Marathon

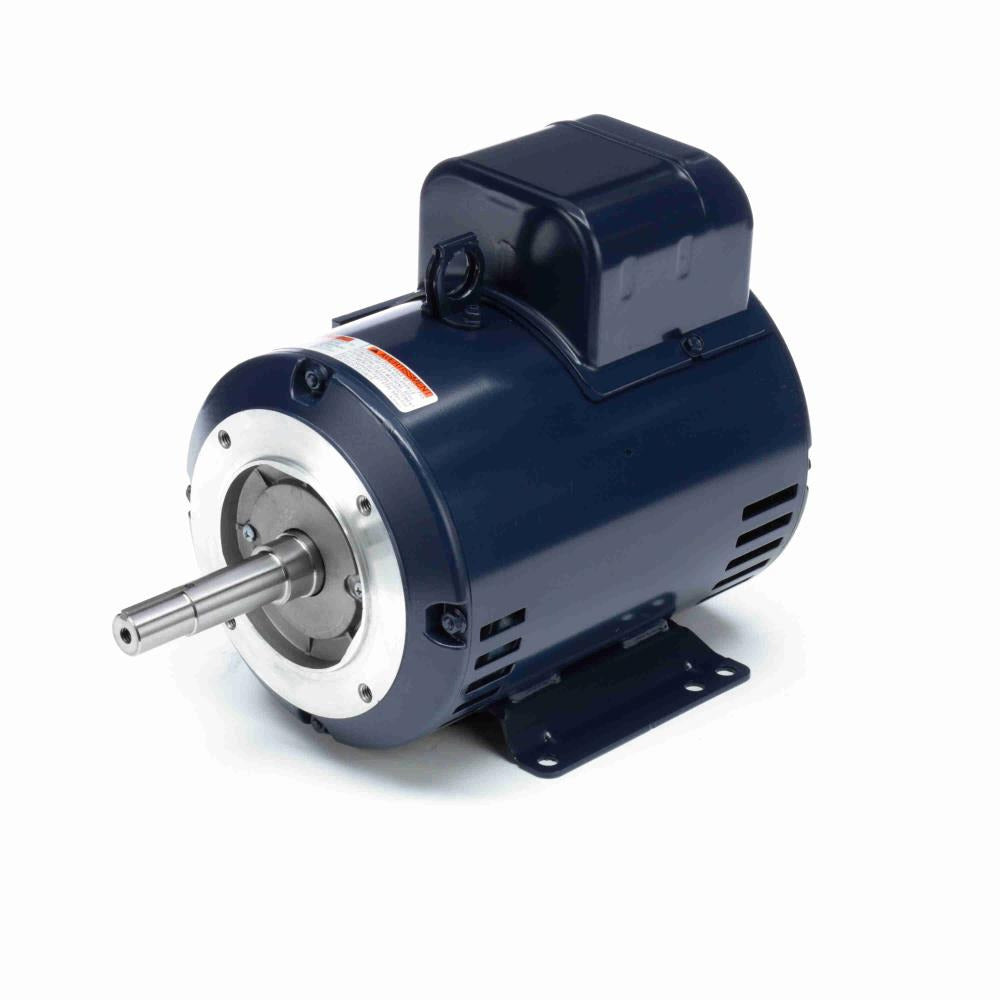

Z407A Marathon Pump Motor - 3 HP - 1747 RPM - 115/230 V - Drip Proof
Z407A Marathon Pump Motor - 3 HP - 1747 RPM - 115/230 V - Drip Proof
Regular price
$802.95 USD
Regular price
Sale price
$802.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Z407A is a new-in-box Pump Motor from Marathon. Designed for pump applications.
Identifiers
| Manufacturer Catalog Number | Z407A |
|---|---|
| Manufacturer Model | 184TCDW7047 |
| Stu's / Vendor SKU | MZ407A |
Specifications
| Horsepower | 3 HP |
|---|---|
| kW | 2.2 kW |
| Rated RPM | 1747 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full-Load Amps | 33.5/16.8 A |
| Service Factor | 1.15 |
| Overload Protection | No Protection |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 75.5 % |
| Speed Count | 1 |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | JM |
| Shaft Details | Diameter 0.875 in; Extension 4.25 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
