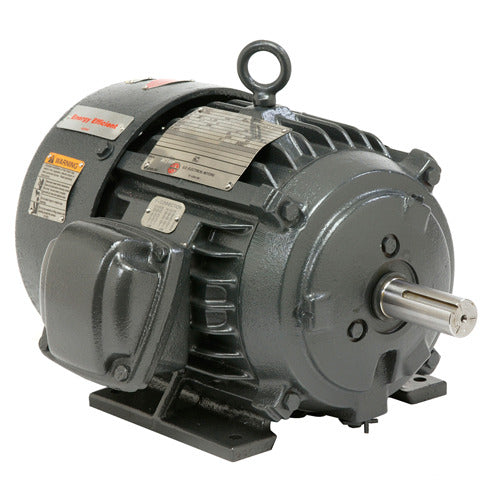

YC2P3B US Motors / Nidec Hazardous Location Motor - 2 HP - 1170 RPM - 230/460 V - TEFC
YC2P3B US Motors / Nidec Hazardous Location Motor - 2 HP - 1170 RPM - 230/460 V - TEFC
Regular price
$1,545.95 USD
Regular price
Sale price
$1,545.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
YC2P3B is a new-in-box Hazardous Location Motor from US Motors / Nidec. Designed for hazardous-location industrial applications.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1200 RPM |
| Rated RPM | 1170 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 5.8/2.9 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 88.5 % |
| Speed Count | 1 |
| Frame | 184T |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | 6206-J/C3 / 6205-J/C3 |
| Material | Cast Iron |
| Ship Weight | 110 lb |
| Country of Origin | MEX |
