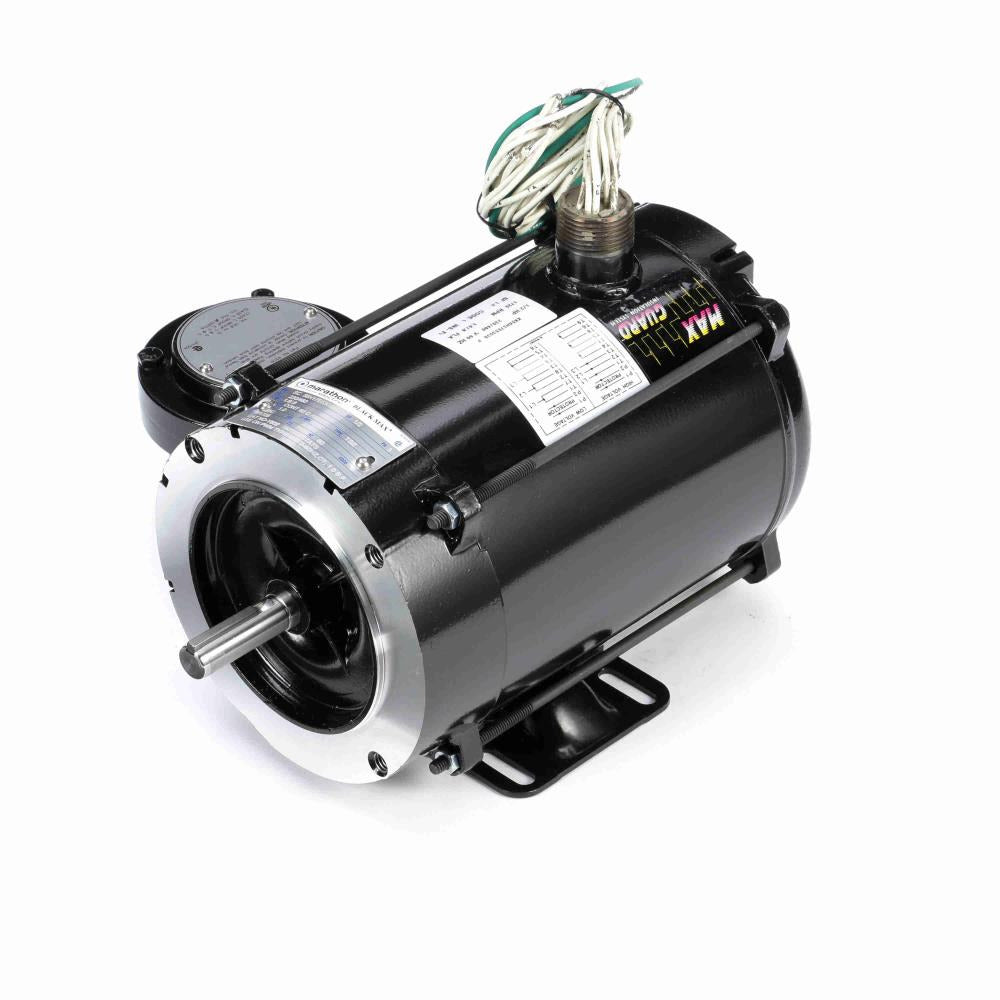

Y602 Marathon Hazardous Location Motor - 1/2 HP - 230/460 V - Explosion Proof Non Ventilated
Y602 Marathon Hazardous Location Motor - 1/2 HP - 230/460 V - Explosion Proof Non Ventilated
Regular price
$855.95 USD
Regular price
Sale price
$855.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Y602 is a new-in-box Hazardous Location Motor from Marathon. Designed for hazardous-location applications.
Identifiers
| Manufacturer Catalog Number | Y602 |
|---|---|
| Manufacturer Model | 056H17E5303 |
| Stu's / Vendor SKU | MY602 |
Specifications
| Horsepower | 1/2 HP |
|---|---|
| kW | 0.37 kW |
| Voltage | 230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Inverter |
| Full-Load Amps | 1.6/0.80 A |
| Service Factor | 1 |
| Overload Protection | Thermostats (N/C) |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 80 % |
| Speed Count | 1 |
| Enclosure | Explosion Proof Non Ventilated |
| Mounting | F3 |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 2.06 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
