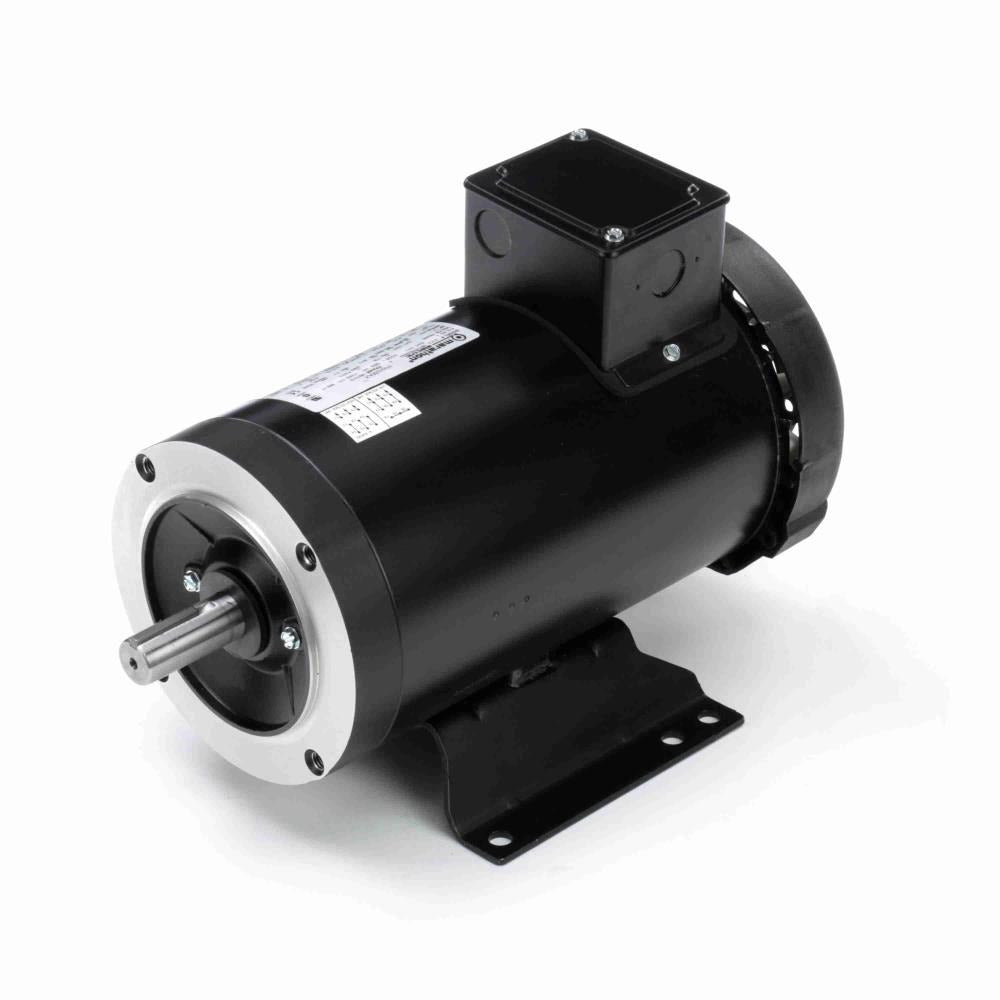

Y370 Marathon General Purpose Motor - 3 HP - 230/460 V - Totally Enclosed Fan Cooled
Y370 Marathon General Purpose Motor - 3 HP - 230/460 V - Totally Enclosed Fan Cooled
Regular price
$1,024.95 USD
Regular price
Sale price
$1,024.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Y370 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | Y370 |
|---|---|
| Manufacturer Model | 182THFR5329 |
| Stu's / Vendor SKU | MY370 |
Specifications
| Horsepower | 3 HP |
|---|---|
| kW | 2.2 kW |
| Voltage | 230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Inverter |
| Full-Load Amps | 8.4/4.2 A |
| Service Factor | 1 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | H |
| Efficiency | 85.5 % |
| Speed Count | 1 |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F3 |
| Shaft Configuration | NEMA 145T |
| Shaft Details | Diameter 0.875 in; Extension 2.12 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
