US Motors / Nidec

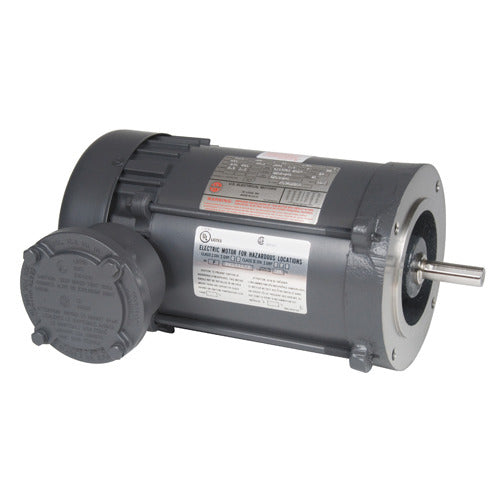

XS34CA2J US Motors / Nidec Hazardous Location Motor - 3/4 HP - 1725 RPM - 115/208-230 & 110/220 V - TEFC
XS34CA2J US Motors / Nidec Hazardous Location Motor - 3/4 HP - 1725 RPM - 115/208-230 & 110/220 V - TEFC
Regular price
$689.95 USD
Regular price
Sale price
$689.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
XS34CA2J is a new-in-box Hazardous Location Motor from US Motors / Nidec. Designed for pumps, fans, compressors, conveyors, tools, and general industrial equipment in hazardous locations.
Specifications
| Horsepower | 3/4 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 & 110/220 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 12.6/6.3-6.3 A |
| Service Factor | 1 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Hazardous Location Rating | Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; T3C |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TEFC |
| Mounting | Rigid base, footed |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Cast Iron |
| Motor Diameter | 6.5 in |
| C Dimension | 13.7 in |
| Length | 13.7 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
