US Motors / Nidec

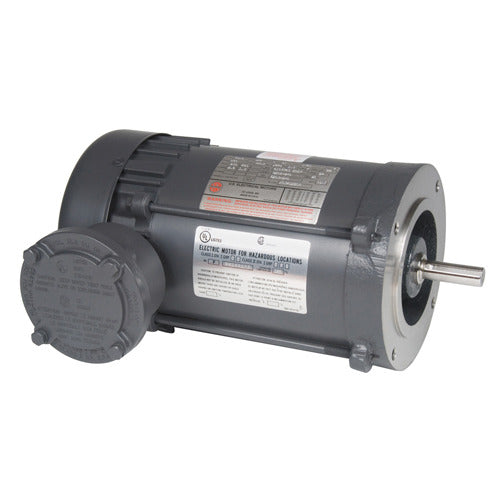

XS2P2ACR US Motors / Nidec Hazardous Location Motor - 2 HP - 1725 RPM - 208-230/460 V - TEFC
XS2P2ACR US Motors / Nidec Hazardous Location Motor - 2 HP - 1725 RPM - 208-230/460 V - TEFC
Regular price
$825.95 USD
Regular price
Sale price
$825.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
XS2P2ACR is a new-in-box Hazardous Location Motor from US Motors / Nidec. Designed for pumps, fans, compressors, conveyors, tools, and general industrial equipment in hazardous locations.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 6.2-6.0/3.0 A |
| Service Factor | 1 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 86.5 % |
| Hazardous Location Rating | Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; T3C |
| Speed Count | 1 |
| Frame | 145TC |
| Enclosure | TEFC |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Steel |
| C Dimension | 15.8 in |
| Length | 15.8 in |
| Ship Weight | 45 lb |
| Country of Origin | MEX |
