US Motors / Nidec

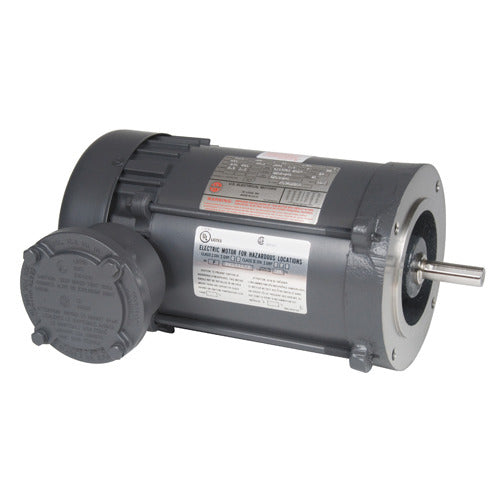

XS13CA2JCR US Motors / Nidec Hazardous Location Motor - 1/3 HP - 1725 RPM - 115/208-230 & 110/220 V - TEFC
XS13CA2JCR US Motors / Nidec Hazardous Location Motor - 1/3 HP - 1725 RPM - 115/208-230 & 110/220 V - TEFC
Regular price
$638.95 USD
Regular price
Sale price
$638.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
XS13CA2JCR is a new-in-box Hazardous Location Motor from US Motors / Nidec. Designed for pumps, fans, compressors, conveyors, tools, and general industrial equipment in hazardous locations.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 & 110/220 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 6.8/3.3-3.4 A |
| Service Factor | 1 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Hazardous Location Rating | Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; T3C |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 12.8 in |
| Length | 12.8 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
