US Motors / Nidec

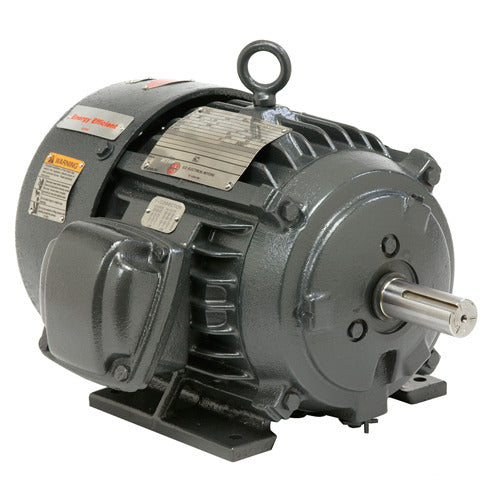

X7P2B US Motors / Nidec Hazardous Location Motor - 7 1/2 HP - 1765 RPM - 230/460 V - TEFC
X7P2B US Motors / Nidec Hazardous Location Motor - 7 1/2 HP - 1765 RPM - 230/460 V - TEFC
Regular price
$1,368.95 USD
Regular price
Sale price
$1,368.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
X7P2B is a new-in-box Hazardous Location Motor from US Motors / Nidec. Designed for pumps, fans, compressors, conveyors, tools, and general industrial equipment in hazardous locations.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1765 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 18.5/9.3 A |
| Service Factor | 1 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Hazardous Location Rating | Class I, Division 1, Group D; Class II, Division 1, Groups F & G; T3B |
| Speed Count | 1 |
| Frame | 213T |
| Enclosure | TEFC |
| Mounting | Rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Cast Iron |
| C Dimension | 19.1 in |
| Length | 19.1 in |
| Ship Weight | 145 lb |
| Country of Origin | MEX |
