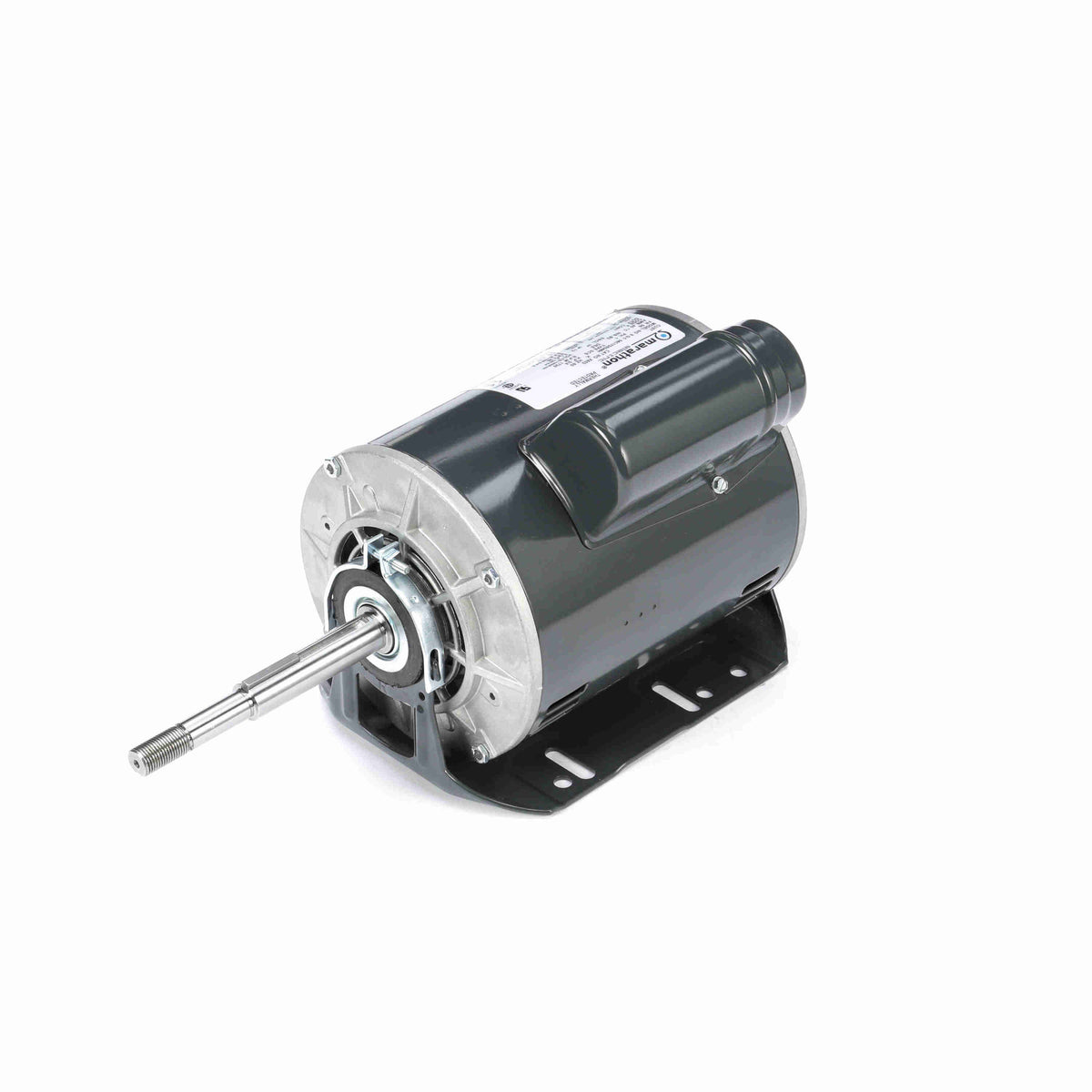

X603 Marathon Definite Purpose Motor - 3/4 HP - 1725 RPM - 115/208-230 V - Drip Proof
X603 Marathon Definite Purpose Motor - 3/4 HP - 1725 RPM - 115/208-230 V - Drip Proof
Regular price
$678.95 USD
Regular price
Sale price
$678.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
X603 is a new-in-box Definite Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | X603 |
|---|---|
| Manufacturer Model | 056C17D5346 |
| Stu's / Vendor SKU | MX603 |
Specifications
| Horsepower | 3/4 HP |
|---|---|
| kW | 0.56 kW |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full-Load Amps | 12.0/5.8-6.0 A |
| Service Factor | 1.25 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 66 % |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.625 in; Extension 5.66 in |
| Rotation | Fixed Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
