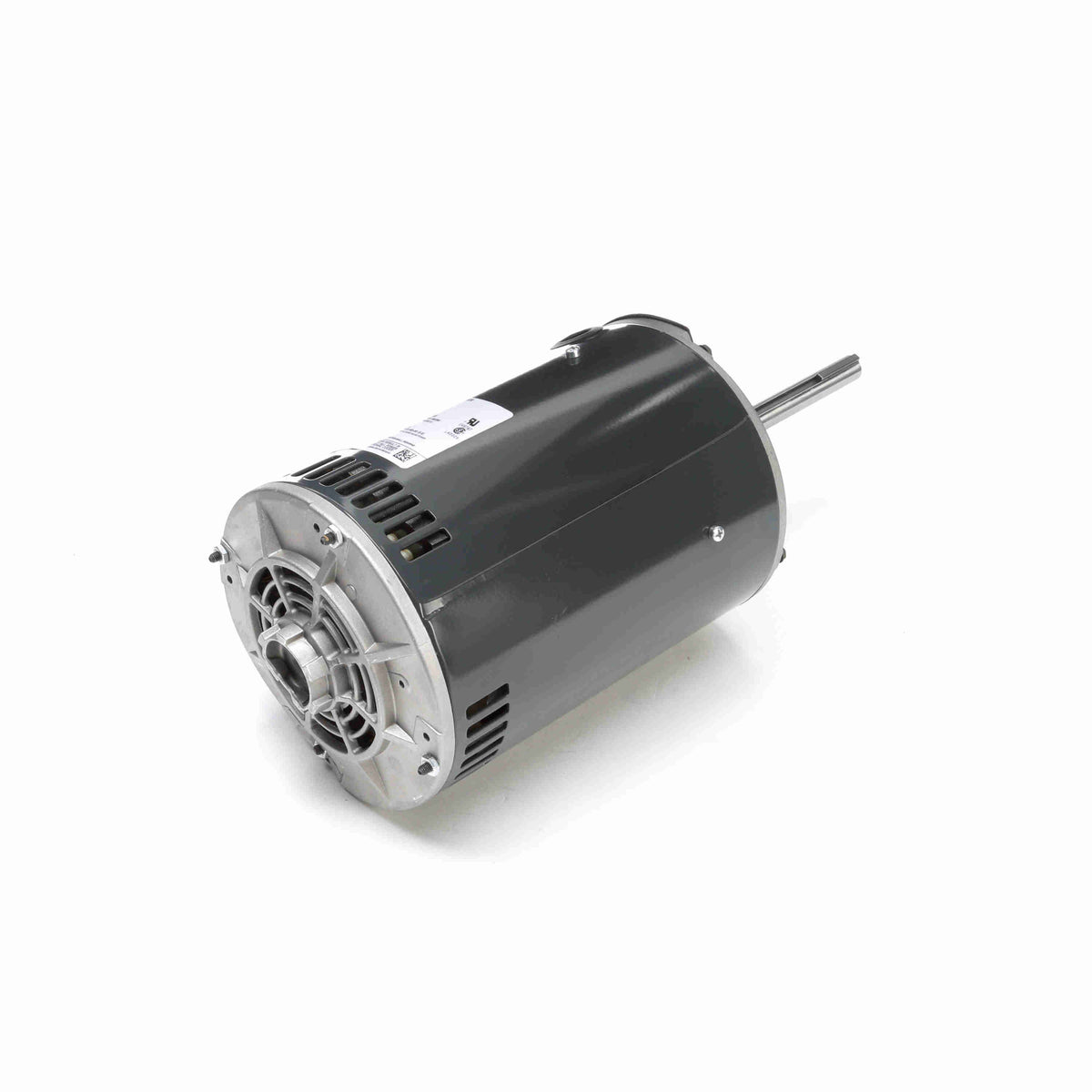

X503 Marathon Condenser Fan Motor - 1.5 HP - 1140 RPM - 200-230/460 V - Open Air Over
X503 Marathon Condenser Fan Motor - 1.5 HP - 1140 RPM - 200-230/460 V - Open Air Over
Regular price
$531.95 USD
Regular price
Sale price
$531.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
X503 is a new-in-box Condenser Fan Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | X503 |
|---|---|
| Manufacturer Model | 056T11O5303 |
| Stu's / Vendor SKU | MX503 |
Specifications
| Horsepower | 1.5 HP |
|---|---|
| kW | 1.1 kW |
| Rated RPM | 1140 RPM |
| Voltage | 200-230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Induction Run |
| Full-Load Amps | 5.5-5.4/2.7 A |
| Service Factor | 1 |
| Overload Protection | Automatic Lock Rotor Only |
| Duty Rating | Continuous |
| Ambient Rating | 70 °C |
| Insulation Class | H |
| Efficiency | 78.5 % |
| Speed Count | 1 |
| Enclosure | Open Air Over |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.625 in; Extension 5.06 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
