Marathon
X448 Marathon Condenser Fan Motor - 1 HP - 1075 RPM - 200-230/460 V - Open Air Over
X448 Marathon Condenser Fan Motor - 1 HP - 1075 RPM - 200-230/460 V - Open Air Over
Regular price
$539.95 USD
Regular price
Sale price
$539.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

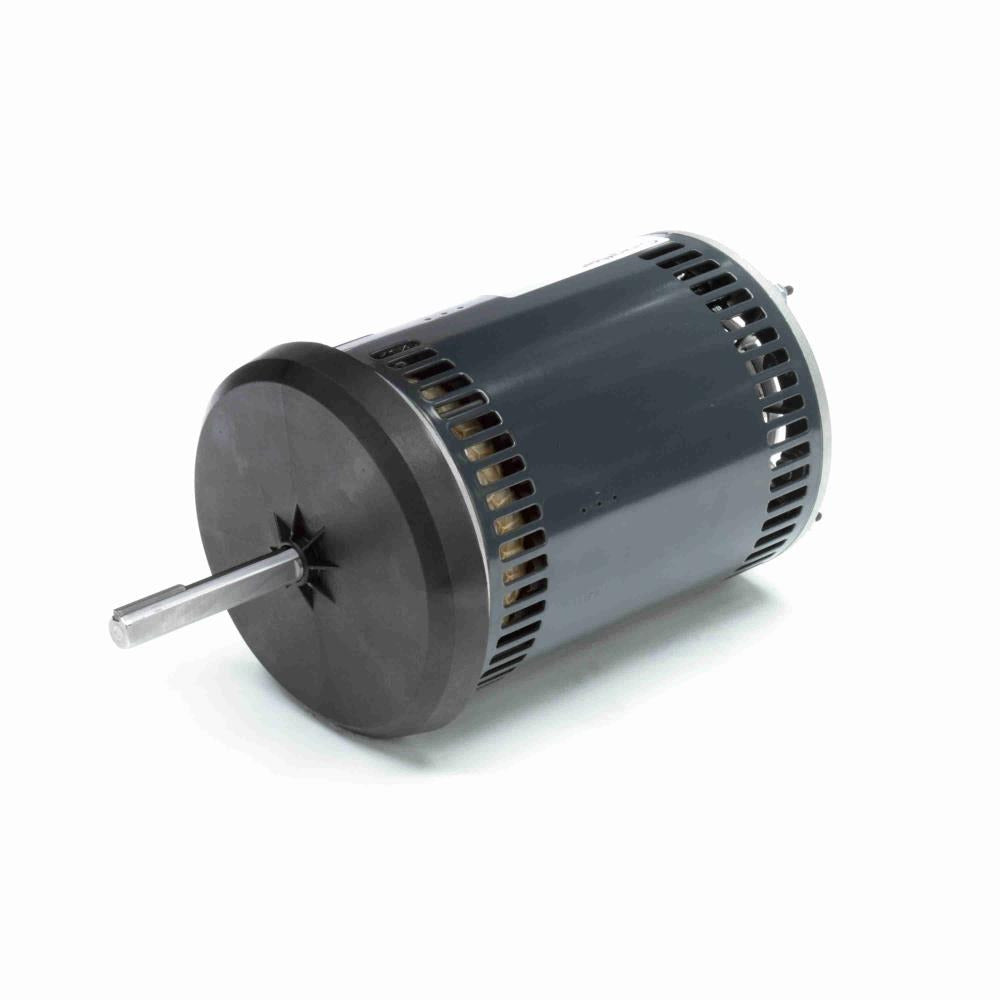

X448 is a new-in-box Condenser Fan Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | X448 |
|---|---|
| Manufacturer Model | 056A11O5314 |
| Stu's / Vendor SKU | MX448 |
Specifications
| Horsepower | 1 HP |
|---|---|
| kW | 0.75 kW |
| Rated RPM | 1075 RPM |
| Voltage | 200-230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 6.0-5.2/2.6 A |
| Service Factor | 1 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 60 °C |
| Insulation Class | B |
| Efficiency | 73 % |
| Enclosure | Open Air Over |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.625 in; Extension 4.09 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
