US Motors / Nidec

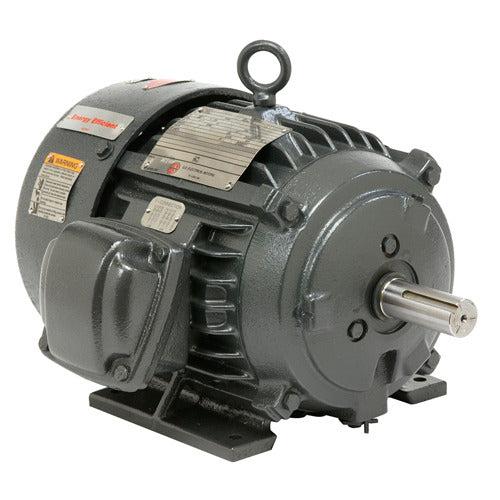

X20P2B US Motors / Nidec Hazardous Location Motor - 20 HP - 1770 RPM - 230/460 V - TEFC
X20P2B US Motors / Nidec Hazardous Location Motor - 20 HP - 1770 RPM - 230/460 V - TEFC
Regular price
$2,731.95 USD
Regular price
Sale price
$2,731.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
X20P2B is a new-in-box Hazardous Location Motor from US Motors / Nidec. Designed for pumps, fans, compressors, conveyors, tools, and general industrial equipment in hazardous locations.
Specifications
| Horsepower | 20 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1770 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 48.0/23.8 A |
| Service Factor | 1 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 93 % |
| Hazardous Location Rating | Class I, Division 1, Group D; Class II, Division 1, Groups F & G; T3B |
| Speed Count | 1 |
| Frame | 256T |
| Enclosure | TEFC |
| Mounting | Rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Cast Iron |
| C Dimension | 25.3 in |
| Length | 25.3 in |
| Ship Weight | 375 lb |
| Country of Origin | MEX |
