X025 Marathon Farm Duty Motor - 1/3 HP - 1625 RPM - 115/230 V - Totally Enclosed Air Over
X025 Marathon Farm Duty Motor - 1/3 HP - 1625 RPM - 115/230 V - Totally Enclosed Air Over
Regular price
$316.95 USD
Regular price
Sale price
$316.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

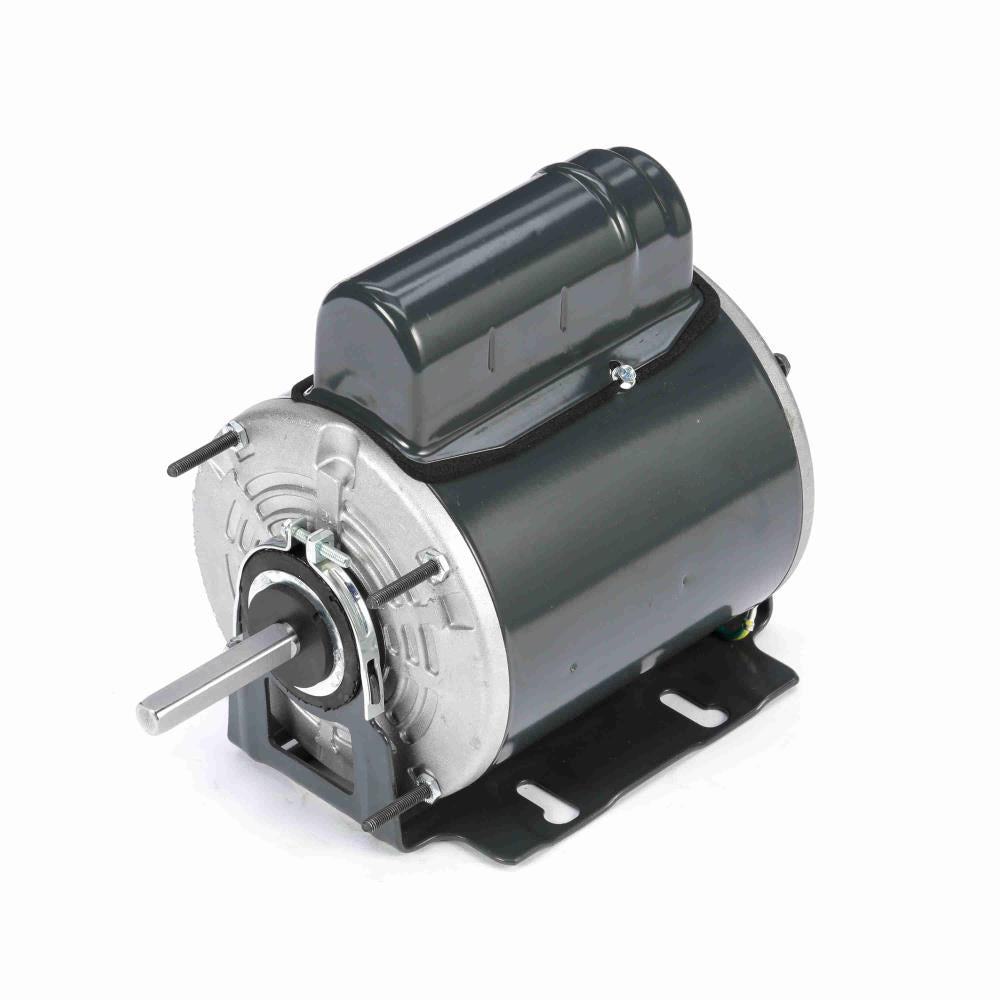

X025 is a new-in-box Farm Duty Motor from Marathon. Designed for farm-duty applications.
Identifiers
| Manufacturer Catalog Number | X025 |
|---|---|
| Manufacturer Model | 048A17T2003 |
| Stu's / Vendor SKU | MX025 |
Specifications
| Horsepower | 1/3 HP |
|---|---|
| kW | 0.25 kW |
| Rated RPM | 1625 RPM |
| Voltage | 115/230 V |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 4.2/2.1 A |
| Service Factor | 1 |
| Overload Protection | Automatic Lock Rotor Only |
| Duty Rating | Motor, 1 |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 68.5 % |
| Enclosure | Totally Enclosed Air Over |
| Mounting | F1 Only |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 2.56 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
