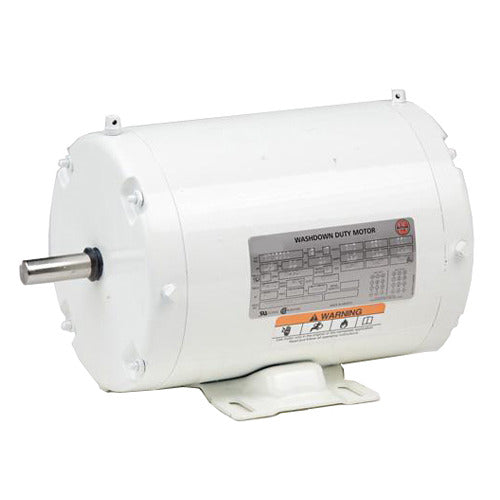

WD7P2D US Motors / Nidec White Epoxy Washdown Motor - 7 1/2 HP - 1765 RPM - 208-230/460 V - TEFC
WD7P2D US Motors / Nidec White Epoxy Washdown Motor - 7 1/2 HP - 1765 RPM - 208-230/460 V - TEFC
Regular price
$1,745.95 USD
Regular price
Sale price
$1,745.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
WD7P2D is a new-in-box White Epoxy Washdown Motor from US Motors / Nidec. Designed for sanitary food-processing, bottling, packaging, pumping, and other frequent-washdown service.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1765 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 20.0-18.2/9.1 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Speed Count | 1 |
| Frame | 213T |
| Enclosure | TEFC |
| Mounting | Rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | Sealed ball bearings |
| Material | Rolled steel with stainless-steel shaft |
| C Dimension | 18.3 in |
| Length | 18.3 in |
| Ship Weight | 117 lb |
| Country of Origin | MEX |
