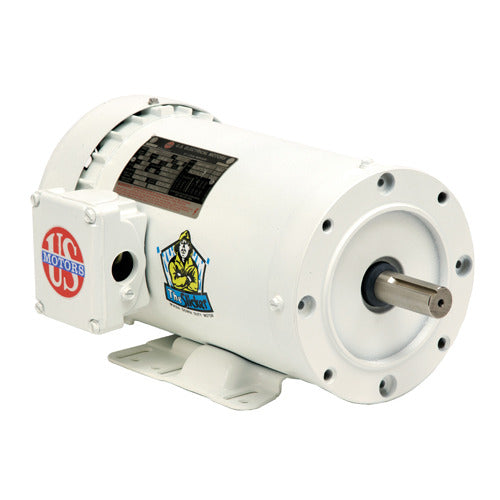

WD3P2DC US Motors / Nidec White Epoxy Washdown Motor - 3 HP - 1765 RPM - 208-230/460 V - TEFC
WD3P2DC US Motors / Nidec White Epoxy Washdown Motor - 3 HP - 1765 RPM - 208-230/460 V - TEFC
Regular price
$1,193.95 USD
Regular price
Sale price
$1,193.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
WD3P2DC is a new-in-box White Epoxy Washdown Motor from US Motors / Nidec. Designed for food-processing and washdown applications.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1765 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 8.2-7.6/3.8 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Speed Count | 1 |
| Frame | 182TC |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code TC |
| Rotation | Reversible |
| Bearings | 6206-2RS-J/C3 / 6205-2RS-J/C3 |
| Material | Rolled Steel |
| Ship Weight | 58 lb |
| Country of Origin | MEX |
