US Motors / Nidec

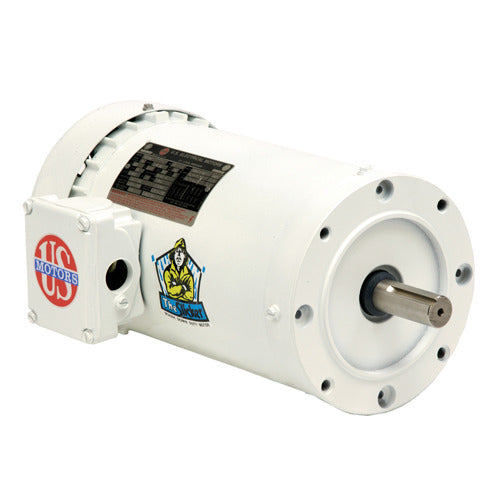

WD2S1ACR US Motors / Nidec White Epoxy Washdown Motor - 2 HP - 3450 RPM - 208-230/460 V - TEFC
WD2S1ACR US Motors / Nidec White Epoxy Washdown Motor - 2 HP - 3450 RPM - 208-230/460 V - TEFC
Regular price
$724.95 USD
Regular price
Sale price
$724.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
WD2S1ACR is a new-in-box White Epoxy Washdown Motor from US Motors / Nidec. Designed for sanitary food-processing, bottling, packaging, pumping, and other frequent-washdown service.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 6.0-5.4/2.7 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 80 % |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Sealed ball bearings |
| Material | Rolled steel with stainless-steel shaft |
| Motor Diameter | 6.5 in |
| C Dimension | 12.8 in |
| Length | 12.8 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
