WD2C2JCR US Motors / Nidec White Epoxy Washdown Motor - 2 HP - 1725 RPM - 115/230 V - TEFC
WD2C2JCR US Motors / Nidec White Epoxy Washdown Motor - 2 HP - 1725 RPM - 115/230 V - TEFC
Regular price
$855.95 USD
Regular price
Sale price
$855.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

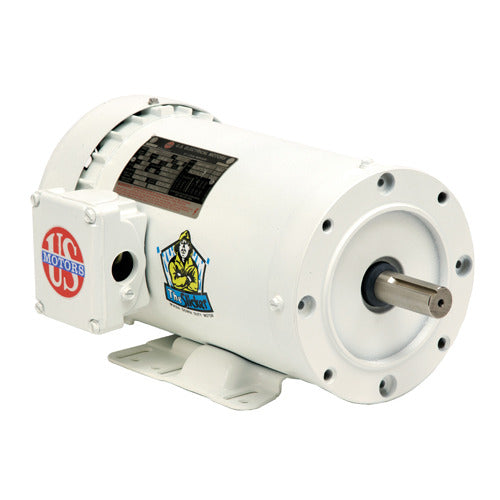

WD2C2JCR is a new-in-box White Epoxy Washdown Motor from US Motors / Nidec. Designed for sanitary food-processing, bottling, packaging, pumping, and other frequent-washdown service.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 19.6/9.8 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Double-contact sealed ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 15.3 in |
| Length | 15.3 in |
| Ship Weight | 48 lb |
| Country of Origin | MEX |
