US Motors / Nidec

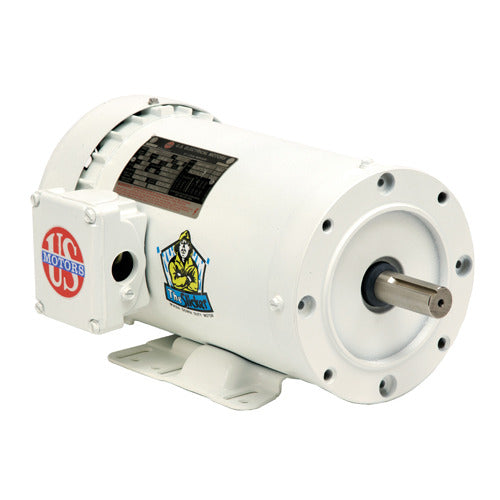

WD1P2AC US Motors / Nidec White Epoxy Washdown Motor - 1 HP - 1725 RPM - 230/460 V - TENV
WD1P2AC US Motors / Nidec White Epoxy Washdown Motor - 1 HP - 1725 RPM - 230/460 V - TENV
Regular price
$703.95 USD
Regular price
Sale price
$703.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
WD1P2AC is a new-in-box White Epoxy Washdown Motor from US Motors / Nidec. Designed for food-processing and washdown applications.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 3.4-3.3/1.8 A |
| Service Factor | 1.15 |
| Overload Protection | None |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 85.5 % |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TENV |
| Mounting | C-Face / Rigid Base |
| Shaft Details | Manufacturer shaft code C |
| Rotation | Reversible |
| Bearings | 6203 / 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 26 lb |
| Country of Origin | MEX |
