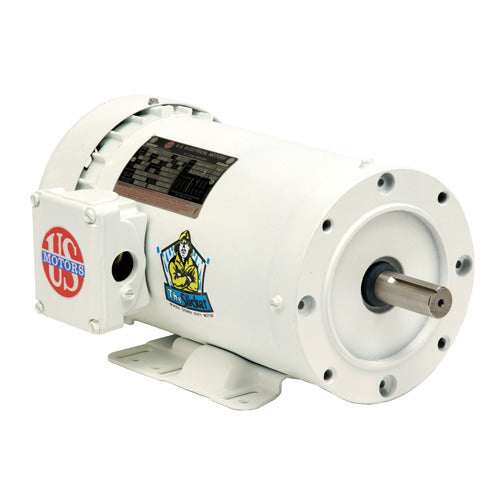

WD1C1JC US Motors / Nidec White Epoxy Washdown Motor - 1 HP - 3450 RPM - 115/208-230 V - TEFC
WD1C1JC US Motors / Nidec White Epoxy Washdown Motor - 1 HP - 3450 RPM - 115/208-230 V - TEFC
Regular price
$512.95 USD
Regular price
Sale price
$512.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
WD1C1JC is a new-in-box White Epoxy Washdown Motor from US Motors / Nidec. Designed for sanitary food-processing, bottling, packaging, pumping, and other frequent-washdown service.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 13.6/6.9-6.8 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face with rigid base |
| Rotation | Reversible |
| Bearings | Double-contact sealed ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 13.3 in |
| Length | 13.3 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
