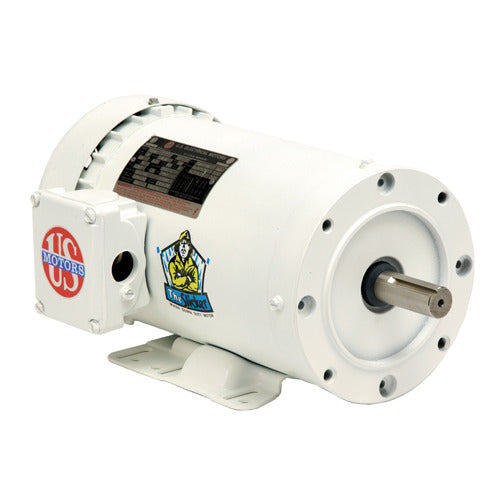

WD12C2JC US Motors / Nidec White Epoxy Washdown Motor - 1/2 HP - 1725 RPM - 115/208-230 V - TEFC
WD12C2JC US Motors / Nidec White Epoxy Washdown Motor - 1/2 HP - 1725 RPM - 115/208-230 V - TEFC
Regular price
$471.95 USD
Regular price
Sale price
$471.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
WD12C2JC is a new-in-box White Epoxy Washdown Motor from US Motors / Nidec. Designed for sanitary washdown service for food, beverage, dairy, pharmaceutical, and cosmetic processing.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 9.5/4.6-4.8 A |
| Service Factor | 1.15 |
| Overload Protection | None (non-protected) |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | Not available from manufacturer |
| Insulation Class | F |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face with rigid base, F1 |
| Shaft Configuration | C |
| Shaft Details | 303 stainless steel shaft with V-ring rotating lip seal |
| Rotation | Reversible |
| Bearings | Double-contact sealed ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 12.8 in |
| Ship Weight | 26 lb |
| Country of Origin | MEX |
