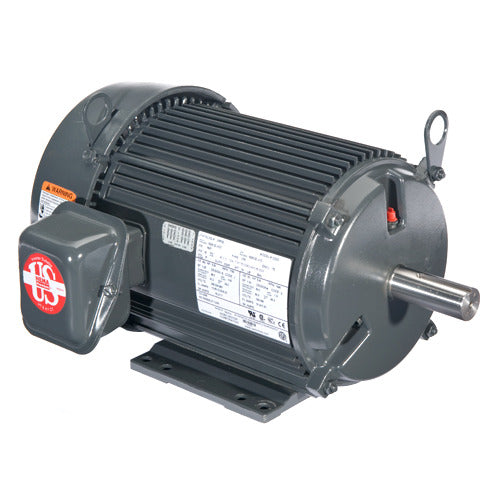

UN12V3BC US Motors / Nidec Inverter Duty Motor - 1/2 HP - 1140 RPM - 208-230/460 V - TENV
UN12V3BC US Motors / Nidec Inverter Duty Motor - 1/2 HP - 1140 RPM - 208-230/460 V - TENV
Regular price
$503.95 USD
Regular price
Sale price
$503.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
UN12V3BC is a new-in-box Inverter Duty Motor from US Motors / Nidec. Designed for variable-frequency-drive powered pumps, fans, and machinery.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1200 RPM |
| Rated RPM | 1140 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 2.3-2.4/1.2 A |
| Service Factor | 1.15 |
| Overload Protection | None |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TENV |
| Mounting | C-Face / Rigid Base |
| Shaft Details | Manufacturer shaft code C |
| Rotation | CW/CCW |
| Bearings | BALL / BALL |
| Material | Aluminum |
| Motor Diameter | 6.5 in |
| Ship Weight | 33 lb |
| Country of Origin | MEX |
