US Motors / Nidec

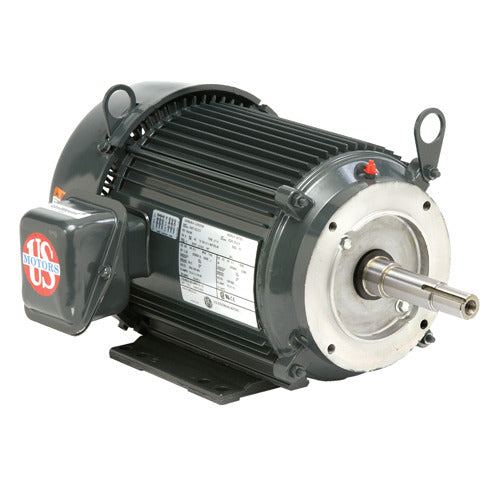

UJ7P1DM US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 3600 RPM - 208-230/460 V - TEFC
UJ7P1DM US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 3600 RPM - 208-230/460 V - TEFC
Regular price
$1,220.95 USD
Regular price
Sale price
$1,220.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
UJ7P1DM is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for centrifugal pumps with the pump impeller mounted directly on the motor shaft.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3600 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 19.9-17.8/8.9 A |
| Service Factor | 1.25 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91 % |
| Speed Count | 1 |
| Frame | 213JM |
| Enclosure | TEFC |
| Mounting | Footed close-coupled pump mount |
| Shaft Configuration | JM shaft for mechanical seal |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Aluminum |
| C Dimension | 19.9 in |
| Length | 19.9 in |
| Ship Weight | 105 lb |
| Country of Origin | MEX |
