US Motors / Nidec

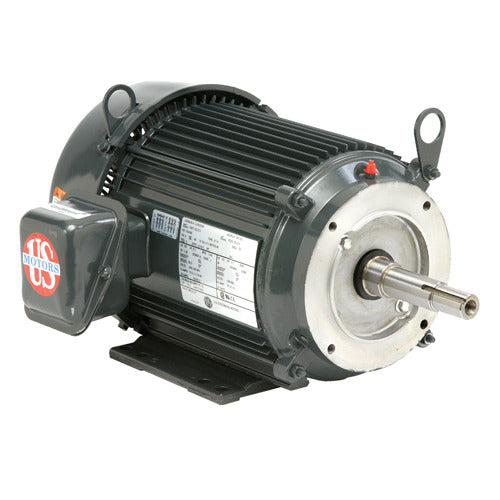

UJ5P2DM US Motors / Nidec General Purpose Motor - 5 HP - 1760 RPM - 208-230/460 V - TEFC
UJ5P2DM US Motors / Nidec General Purpose Motor - 5 HP - 1760 RPM - 208-230/460 V - TEFC
Regular price
$741.95 USD
Regular price
Sale price
$741.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
UJ5P2DM is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1760 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 14-12.7/6.3 A |
| Service Factor | 1.25 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Speed Count | 1 |
| Frame | 184JM |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code JM |
| Rotation | Reversible |
| Bearings | 6307-2Z-J/C3 / 6205-2Z-J/C3 |
| Material | Aluminum |
| Length | 44 in |
| Width | 44 in |
| Height | 20 in |
| Ship Weight | 70 lb |
