US Motors / Nidec

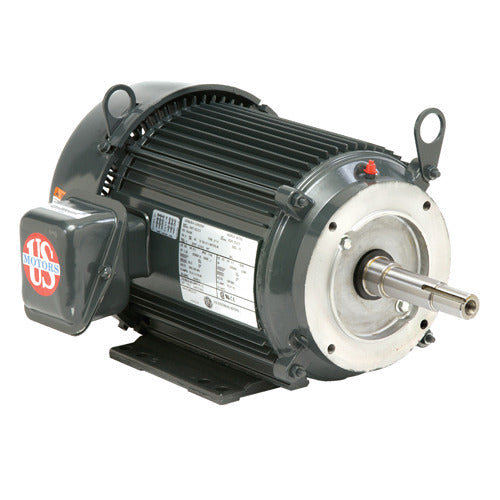

UJ2P2DP US Motors / Nidec Close Coupled Pump Motor - 2 HP - 1800 RPM - 208-230/460 V - TEFC
UJ2P2DP US Motors / Nidec Close Coupled Pump Motor - 2 HP - 1800 RPM - 208-230/460 V - TEFC
Regular price
$602.95 USD
Regular price
Sale price
$602.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
UJ2P2DP is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for centrifugal pumps with the pump impeller mounted directly on the motor shaft.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 5.9-5.7/2.8 A |
| Service Factor | 1.25 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Frame | 145JP |
| Enclosure | TEFC |
| Mounting | Footed close-coupled pump mount |
| Shaft Configuration | JP shaft for packing seal |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Rolled Steel |
| C Dimension | 18.3 in |
| Length | 18.3 in |
| Ship Weight | 35 lb |
| Country of Origin | MEX |
