US Motors / Nidec

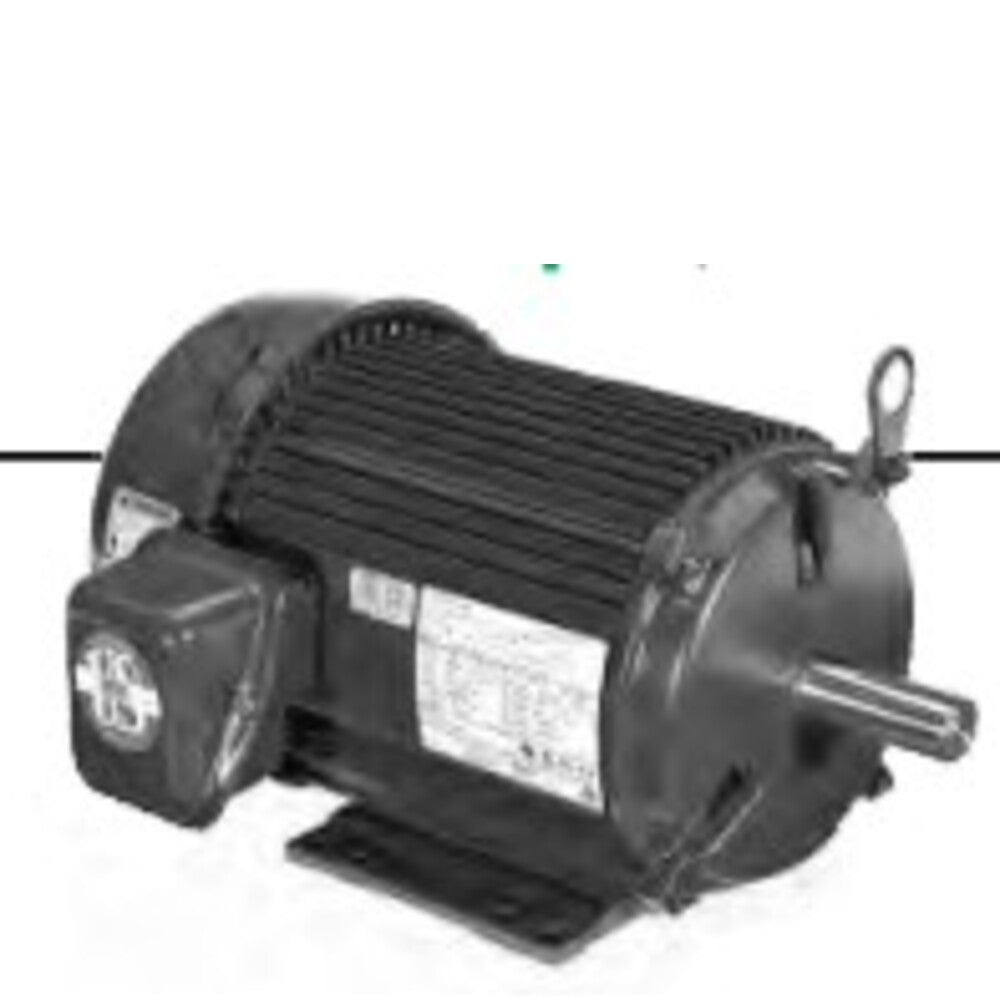

U7V2B US Motors / Nidec Inverter Duty Motor - 7 1/2 HP - 1770 RPM - 230/460 V - TEFC
U7V2B US Motors / Nidec Inverter Duty Motor - 7 1/2 HP - 1770 RPM - 230/460 V - TEFC
Regular price
$993.95 USD
Regular price
Sale price
$993.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U7V2B is a new-in-box Inverter Duty Motor from US Motors / Nidec. Designed for variable-frequency-drive powered pumps, fans, and machinery.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1770 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 19.3/9.6 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Speed Count | 1 |
| Frame | 213T |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | 6208-2Z-J/C3 / 6206-2Z-J/C3 |
| Material | Aluminum |
| Ship Weight | 115 lb |
| Country of Origin | MEX |
