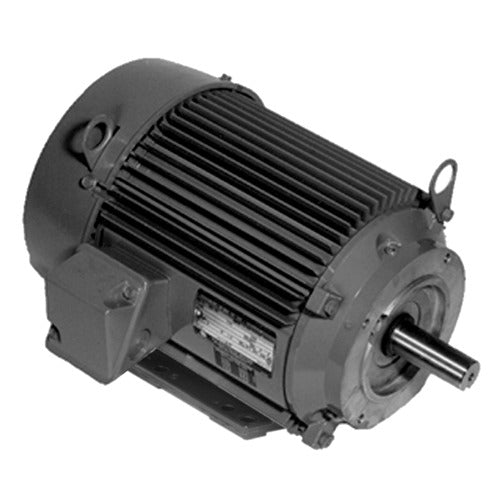

U7P2DC US Motors / Nidec UNIMOUNT General Purpose Motor - 7 1/2 HP - 1765 RPM - 208-230/460 V - TEFC
U7P2DC US Motors / Nidec UNIMOUNT General Purpose Motor - 7 1/2 HP - 1765 RPM - 208-230/460 V - TEFC
Regular price
$1,042.95 USD
Regular price
Sale price
$1,042.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U7P2DC is a new-in-box UNIMOUNT General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial equipment requiring a rigid-base C-face motor.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1765 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 20.0-18.2/9.1 A |
| Service Factor | 1.15 |
| Overload Protection | Not listed by manufacturer |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 213TC |
| Enclosure | TEFC |
| Mounting | Horizontal footed C-face, F1 |
| Shaft Details | Manufacturer shaft code TC |
| Rotation | Reversible |
| Bearings | DE 6208; ODE 6206 |
| Material | Aluminum |
| Ship Weight | 105 lb |
| Country of Origin | MEX |
