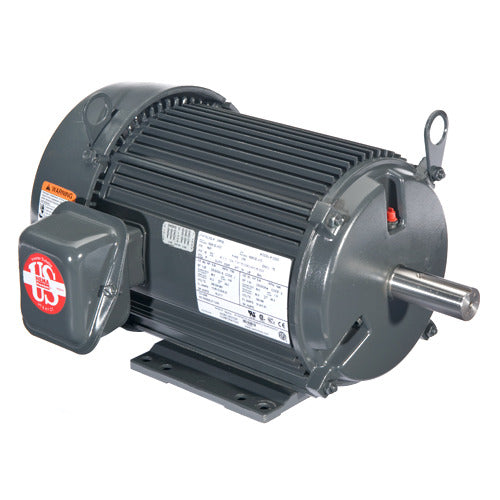

U5V2BC US Motors / Nidec Inverter Duty Motor - 5 HP - 1760 RPM - 230/460 V - TEFC
U5V2BC US Motors / Nidec Inverter Duty Motor - 5 HP - 1760 RPM - 230/460 V - TEFC
Regular price
$726.95 USD
Regular price
Sale price
$726.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U5V2BC is a new-in-box Inverter Duty Motor from US Motors / Nidec. Designed for variable-frequency-drive powered pumps, fans, and machinery.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1760 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 12.7/6.3 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Speed Count | 1 |
| Frame | 184TC |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code TC |
| Rotation | Reversible |
| Bearings | 6206-2Z-J/C3 / 6205-2Z-J/C3 |
| Material | Aluminum |
| Ship Weight | 70 lb |
| Country of Origin | MEX |
