US Motors / Nidec

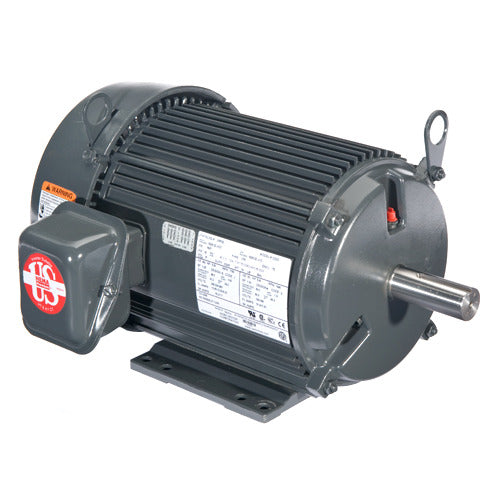

U5P2H US Motors / Nidec General Purpose Motor - 5 HP - 1760 RPM - 200 V - TEFC
U5P2H US Motors / Nidec General Purpose Motor - 5 HP - 1760 RPM - 200 V - TEFC
Regular price
$714.95 USD
Regular price
Sale price
$714.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U5P2H is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general industrial equipment including fans, blowers, compressors, pumps, and direct-connected equipment.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1760 RPM |
| Voltage | 200 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 14.2 A |
| Service Factor | 1.25 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Speed Count | 1 |
| Frame | 184T |
| Enclosure | TEFC |
| Mounting | Rigid base (footed) |
| Rotation | Reversible |
| Bearings | Sealed bearings (140 frame); double-shielded bearings (180 frame and up) |
| Material | Aluminum |
| C Dimension | 17.3 in |
| Ship Weight | 80 lb |
| Country of Origin | MEX |
