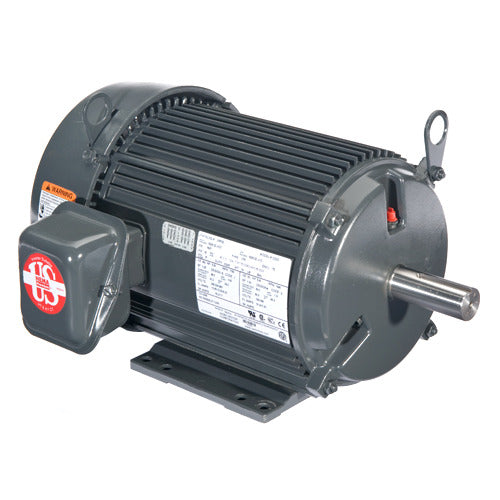

U5L9C US Motors / Nidec Two-Speed Motor - 5 HP - 1750 RPM - 460 V - TENV
U5L9C US Motors / Nidec Two-Speed Motor - 5 HP - 1750 RPM - 460 V - TENV
Regular price
$1,488.95 USD
Regular price
Sale price
$1,488.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U5L9C is a new-in-box Two-Speed Motor from US Motors / Nidec. Designed for two-speed equipment applications.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1750 RPM |
| Voltage | 460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 7 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 84 % |
| Speed Count | 2 |
| Frame | 184T |
| Enclosure | TENV |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | 6206-2Z-J/C3 / 6205-2Z-J/C3 |
| Material | Aluminum |
| Ship Weight | 64 lb |
| Country of Origin | MEX |
