Marathon

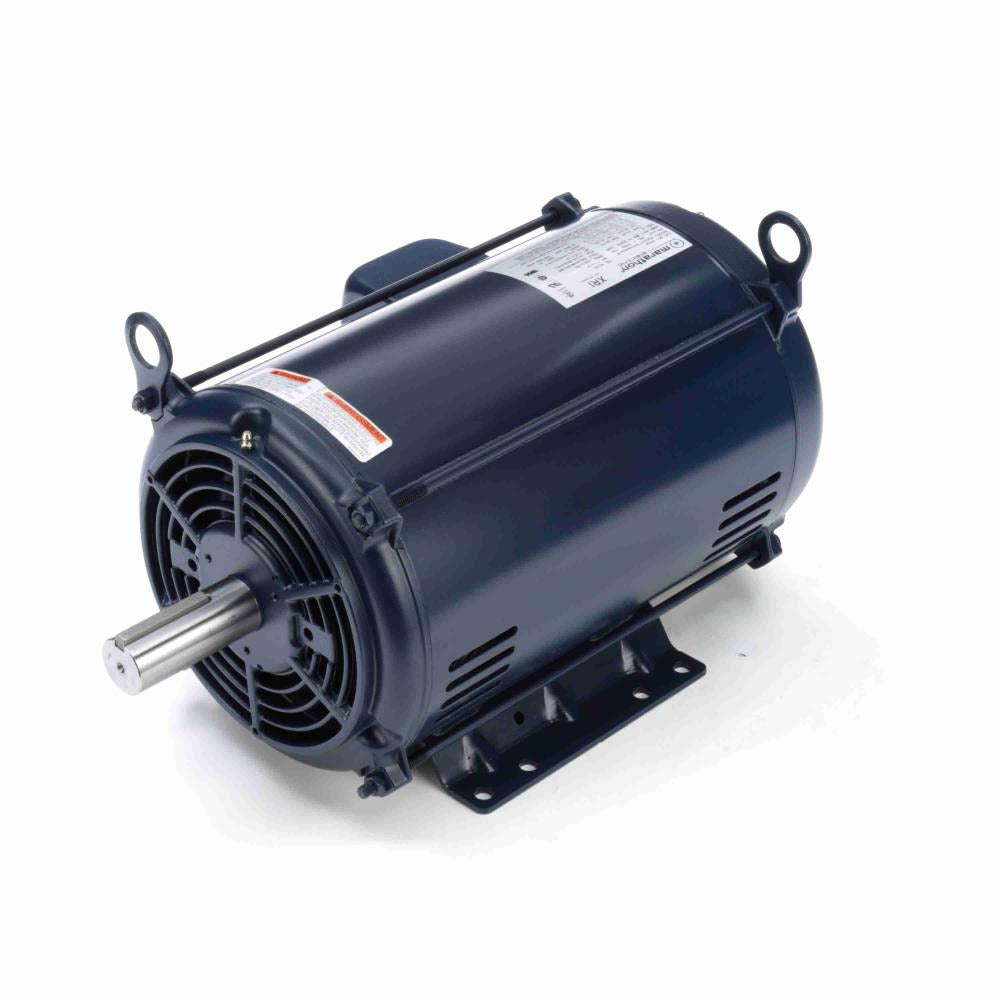

U430A Marathon General Purpose Motor - 7.5-5 HP - DP
U430A Marathon General Purpose Motor - 7.5-5 HP - DP
Regular price
$974.95 USD
Regular price
Sale price
$974.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U430A is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | U430A |
|---|---|
| Manufacturer Model | 213TTDW16060 |
| Stu's / Vendor SKU | MU430A |
Specifications
| Horsepower | 7.5 HP |
|---|---|
| Alternate Horsepower | 5 HP |
| Phase | Three Phase |
| Electrical Type | Squirrel Cage Induction Run |
| Overload Protection | AUTOMATIC |
| Duty Rating | CONTINUOUS |
| Ambient Rating | 40 °C |
| Insulation Class | F4 |
| Speed Count | 1 |
| Enclosure | DP |
| Mounting | F1/F2 CAPABLE |
| Shaft Configuration | T |
| Shaft Details | Diameter 1 3/8 in; Extension 3.47 in |
| Rotation | REV |
| Bearings | BALL / BALL |
| Material | ROLLED STEEL |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
