Marathon

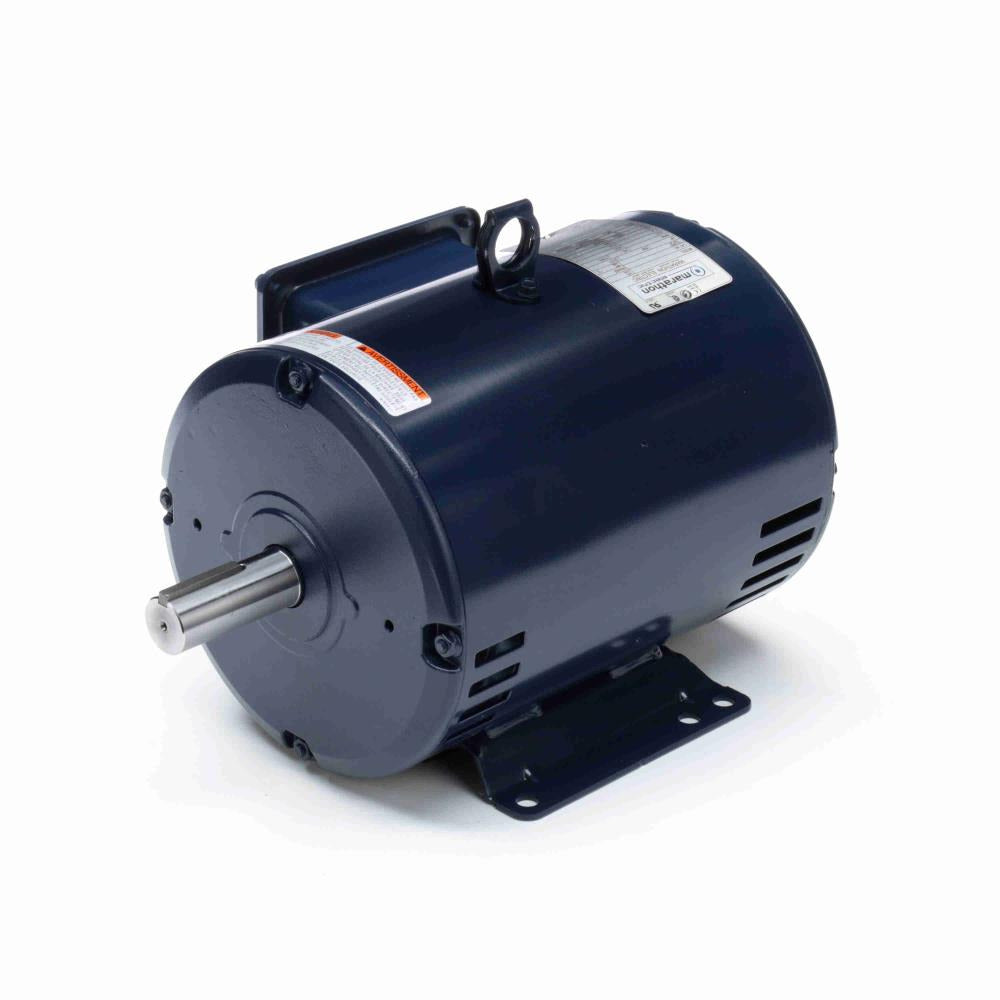

U428B Marathon General Purpose Motor - 5-4 HP - DP
U428B Marathon General Purpose Motor - 5-4 HP - DP
Regular price
$792.95 USD
Regular price
Sale price
$792.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U428B is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | U428B |
|---|---|
| Manufacturer Model | 184TTDW16038 |
| Stu's / Vendor SKU | MU428B |
Specifications
| Horsepower | 5 HP |
|---|---|
| Alternate Horsepower | 4 HP |
| Phase | Three Phase |
| Electrical Type | Squirrel Cage Induction Run |
| Overload Protection | AUTOMATIC |
| Duty Rating | CONTINUOUS |
| Ambient Rating | 40 °C |
| Insulation Class | F4 |
| Speed Count | 1 |
| Enclosure | DP |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 1 1/8 in; Extension 2.81 in |
| Rotation | REV |
| Bearings | BALL / BALL |
| Material | ROLLED STEEL |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
