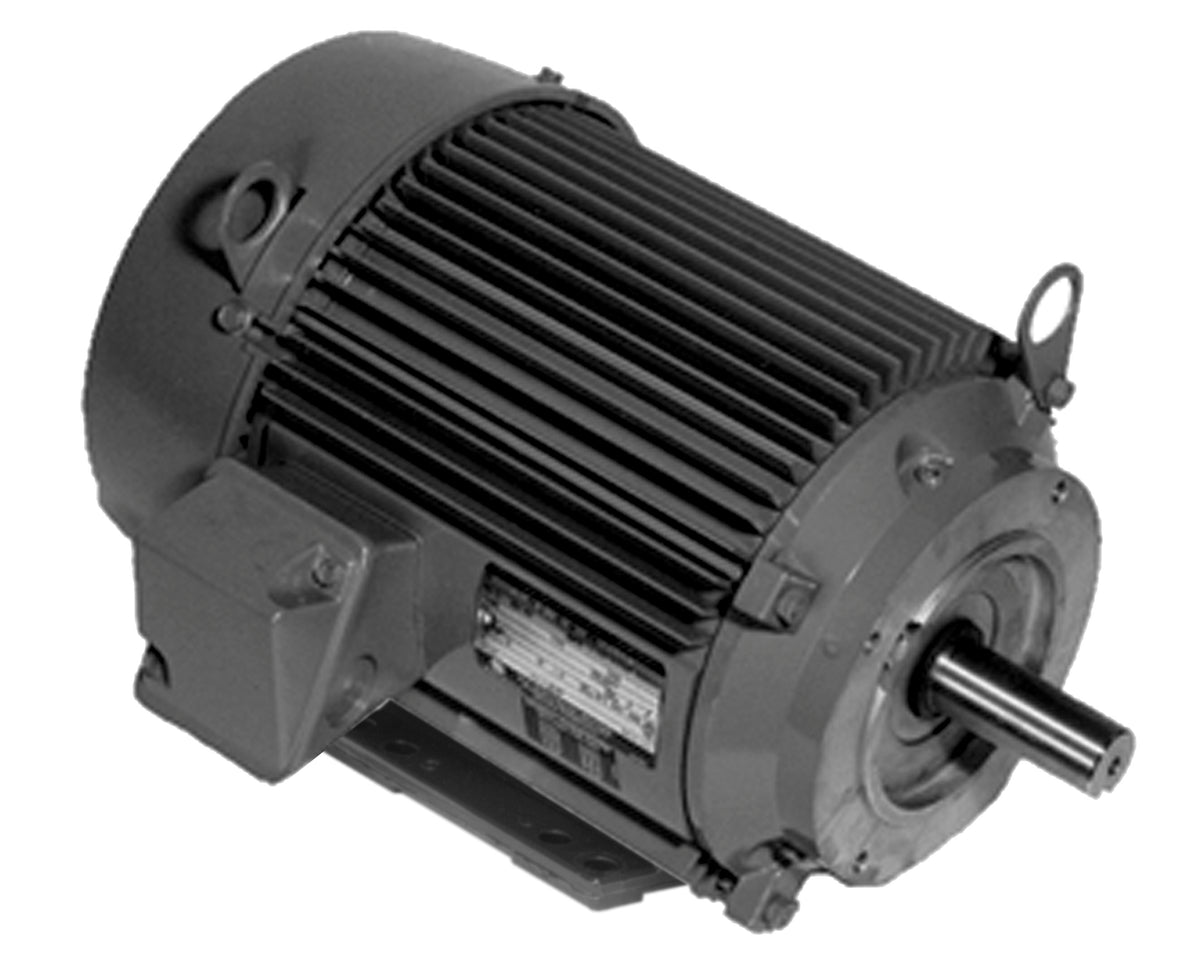

U32P2DC US Motors / Nidec UNIMOUNT General Purpose Motor - 1 1/2 HP - 1760 RPM - 230/460 V - TEFC
U32P2DC US Motors / Nidec UNIMOUNT General Purpose Motor - 1 1/2 HP - 1760 RPM - 230/460 V - TEFC
Regular price
$541.95 USD
Regular price
Sale price
$541.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U32P2DC is a new-in-box UNIMOUNT General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial applications.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1760 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 4.3/2.2 A |
| Service Factor | 1.25 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 145TC |
| Enclosure | TEFC |
| Mounting | Horizontal footed, C-face, F1 |
| Shaft Details | Manufacturer shaft code TC |
| Rotation | Reversible |
| Bearings | DE 6205-2Z-J/C3; ODE 6203-2Z-J/C3 |
| Material | Rolled Steel |
| Ship Weight | 35 lb |
| Country of Origin | MEX |
