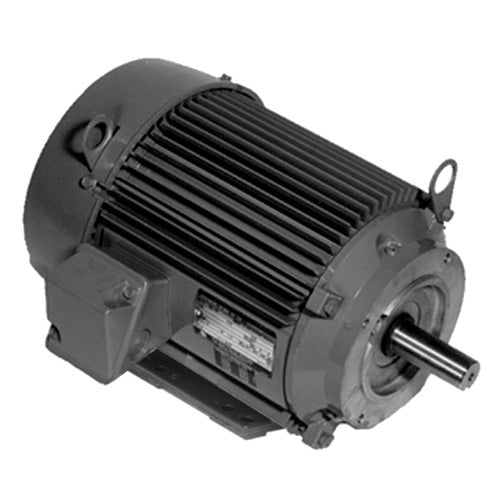

U2P3DCR US Motors / Nidec UNIMOUNT General Purpose Motor - 2 HP - 1175 RPM - 208-230/460 V - TEFC
U2P3DCR US Motors / Nidec UNIMOUNT General Purpose Motor - 2 HP - 1175 RPM - 208-230/460 V - TEFC
Regular price
$787.95 USD
Regular price
Sale price
$787.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U2P3DCR is a new-in-box UNIMOUNT General Purpose Motor from US Motors / Nidec. Designed for general industrial equipment including fans, blowers, compressors, pumps, and direct-connected machinery.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1200 RPM |
| Rated RPM | 1175 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 6.4-6.2/3.1 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 88.5 % |
| Speed Count | 1 |
| Frame | 184TC |
| Enclosure | TEFC |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Aluminum |
| C Dimension | 16.9 in |
| Length | 16.9 in |
| Ship Weight | 70 lb |
| Country of Origin | MEX |
