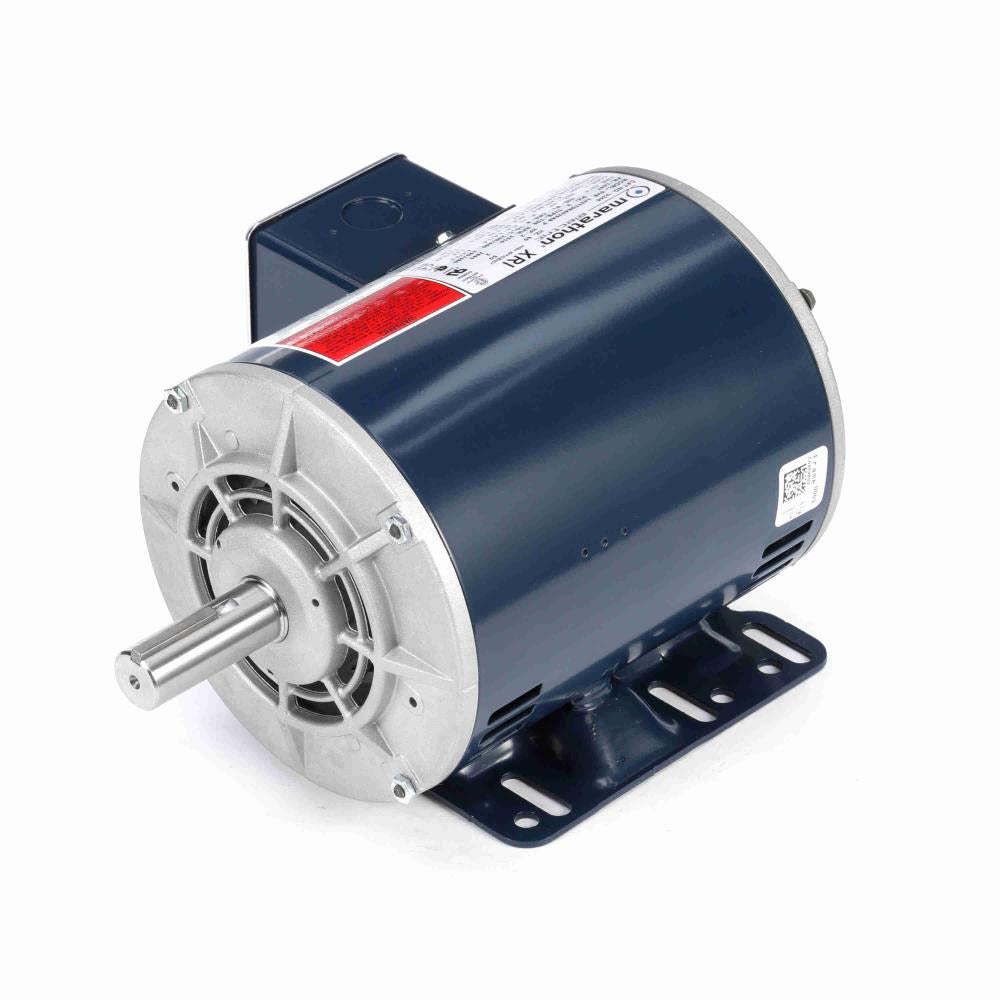

U246 Marathon General Purpose Motor - 2 HP - 3510 RPM - 230/460 V - Drip Proof
U246 Marathon General Purpose Motor - 2 HP - 3510 RPM - 230/460 V - Drip Proof
Regular price
$691.95 USD
Regular price
Sale price
$691.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U246 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | U246 |
|---|---|
| Manufacturer Model | 145TTDR6039 |
| Stu's / Vendor SKU | MU246 |
Specifications
| Horsepower | 2 HP |
|---|---|
| kW | 1.5 kW |
| Rated RPM | 3510 RPM |
| Voltage | 230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Inverter Rated |
| Full-Load Amps | 5.6/2.8 A |
| Service Factor | 1.15 |
| Overload Protection | Thermostats (N/C) |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.875 in; Extension 2.28 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
