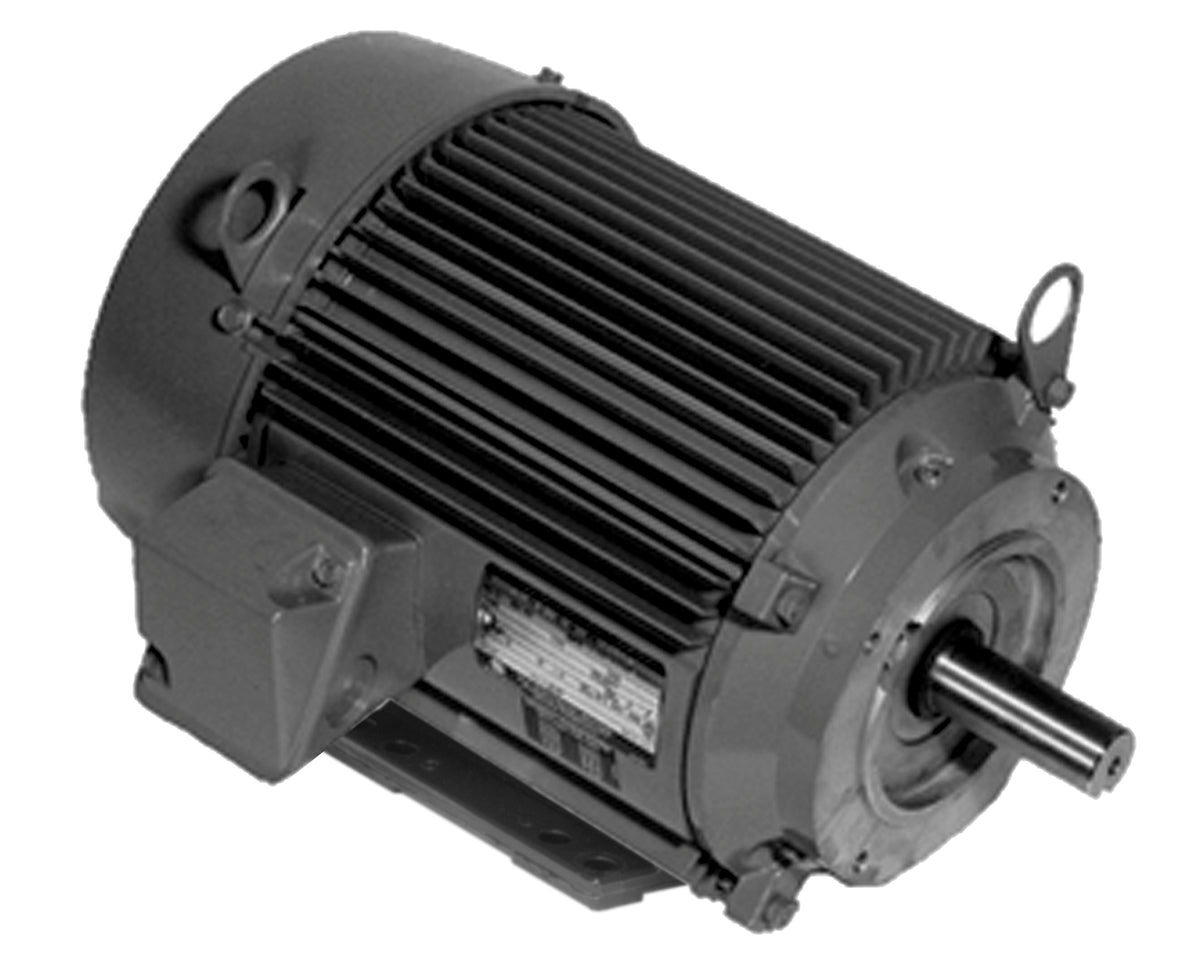

U1P2DC US Motors / Nidec UNIMOUNT General Purpose Motor - 1 HP - 1765 RPM - 230/460 V - TEFC
U1P2DC US Motors / Nidec UNIMOUNT General Purpose Motor - 1 HP - 1765 RPM - 230/460 V - TEFC
Regular price
$496.95 USD
Regular price
Sale price
$496.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U1P2DC is a new-in-box UNIMOUNT General Purpose Motor from US Motors / Nidec. Designed for general industrial equipment including fans, blowers, compressors, pumps, and direct-connected machinery.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1765 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 3.1/1.6 A |
| Service Factor | 1.25 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 85.5 % |
| Speed Count | 1 |
| Frame | 143TC |
| Enclosure | TEFC |
| Mounting | C-face with rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | 6203 / 6205 ball bearings |
| Material | Rolled Steel |
| Ship Weight | 30 lb |
| Country of Origin | MEX |
