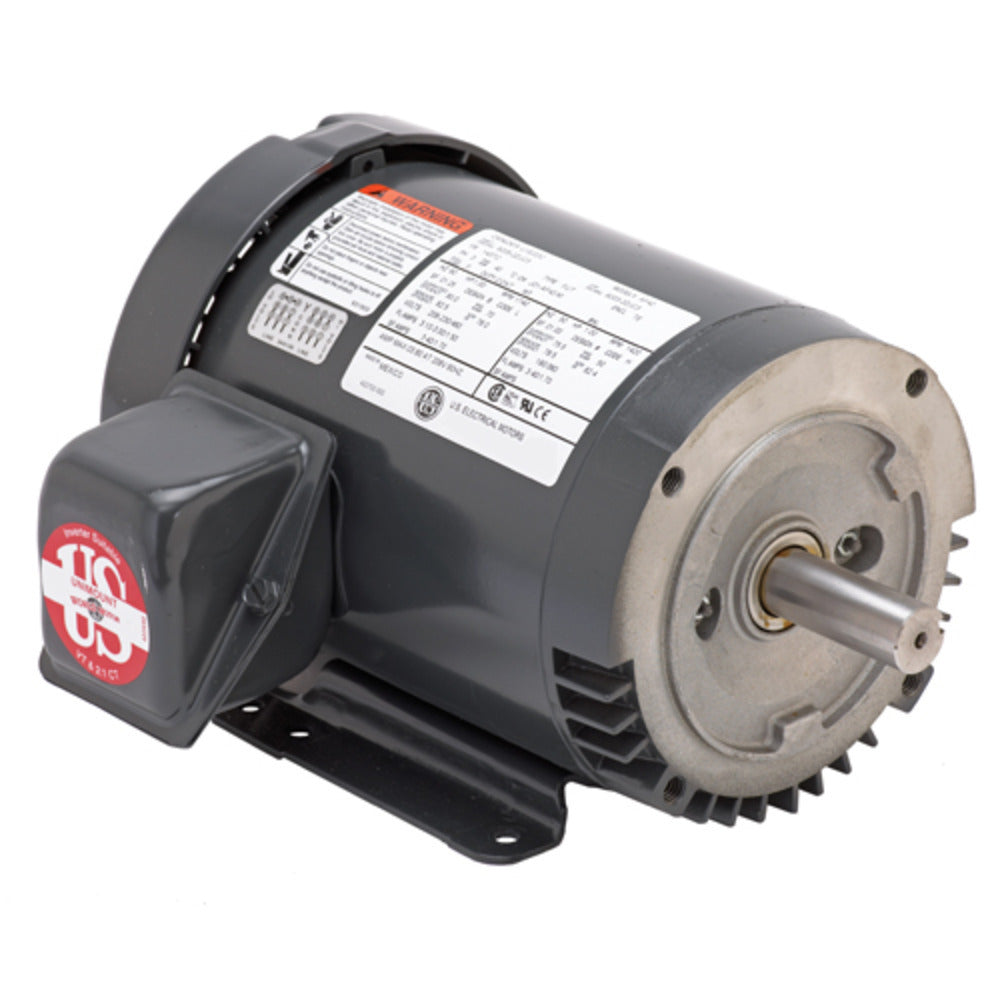

U12S2AC US Motors / Nidec STEEL EDGE General Purpose Motor - 1/2 HP - 1770 RPM - 230/460 V - TEFC
U12S2AC US Motors / Nidec STEEL EDGE General Purpose Motor - 1/2 HP - 1770 RPM - 230/460 V - TEFC
Regular price
$291.95 USD
Regular price
Sale price
$291.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U12S2AC is a new-in-box STEEL EDGE General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial equipment including fans, blowers, compressors, pumps, and direct-connected equipment.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1770 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 2.0/1.0 A |
| Service Factor | 1.25 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 78.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TEFC |
| Mounting | Horizontal footed, C-face, F1 |
| Shaft Details | Manufacturer shaft code C |
| Rotation | Reversible |
| Bearings | DE 6203; ODE 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 10.8 in |
| Length | 16 in |
| Width | 13 in |
| Height | 10 in |
| Ship Weight | 30 lb |
| Country of Origin | MEX |
