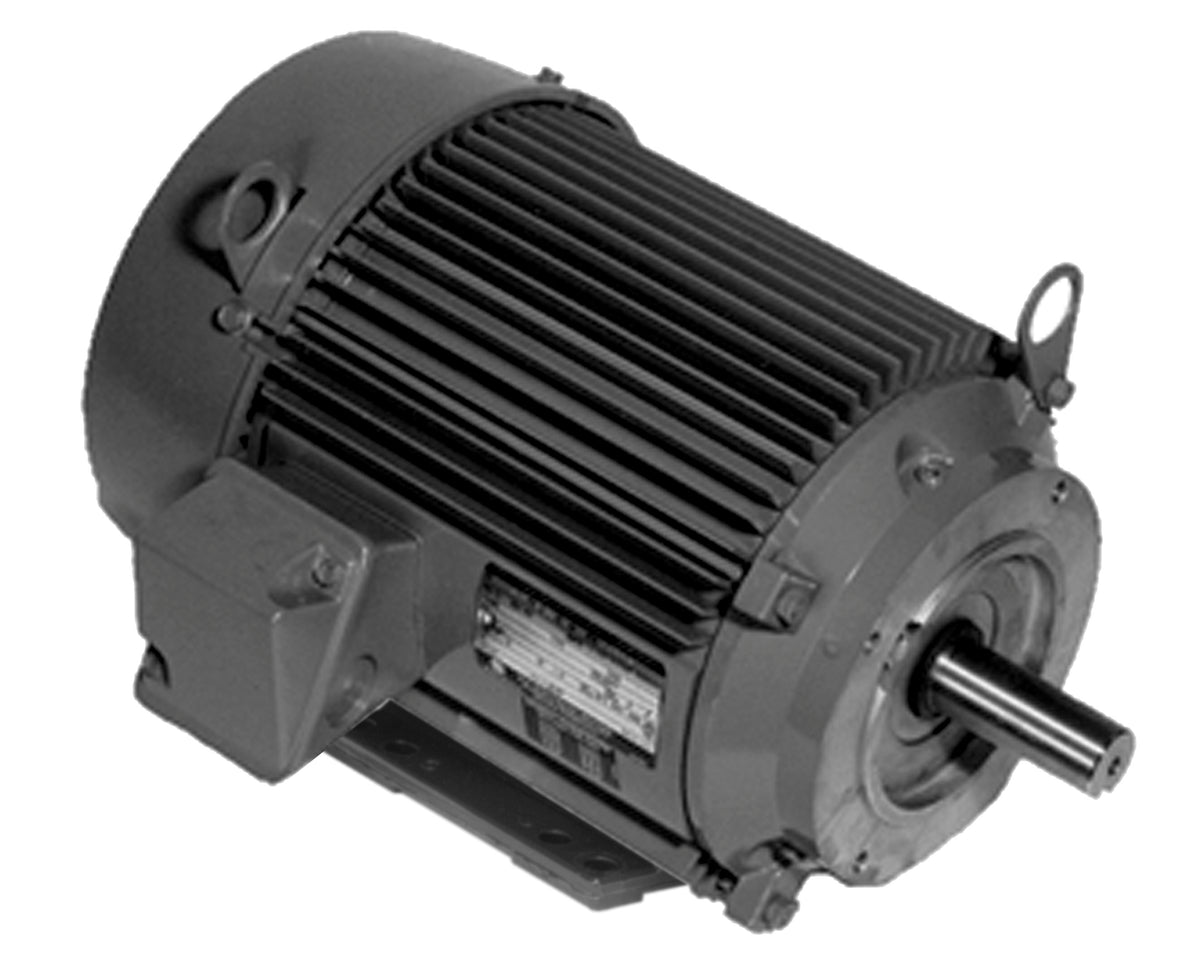

U12S1AC US Motors / Nidec General Purpose Motor - 1/2 HP - 3500 RPM - 208-230/460 V - TEFC
U12S1AC US Motors / Nidec General Purpose Motor - 1/2 HP - 3500 RPM - 208-230/460 V - TEFC
Regular price
$291.95 USD
Regular price
Sale price
$291.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U12S1AC is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for direct-connected general industrial equipment.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3500 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 1.7-1.5/0.8 A |
| Service Factor | 1.25 |
| Overload Protection | Not listed by manufacturer |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 72 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face with rigid base, F1 |
| Shaft Configuration | C |
| Shaft Details | Manufacturer shaft code C |
| Rotation | Dual rotation; reversible |
| Bearings | 6203 ball bearings, both ends |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 25.05 lb |
| Country of Origin | MEX |
