US Motors / Nidec

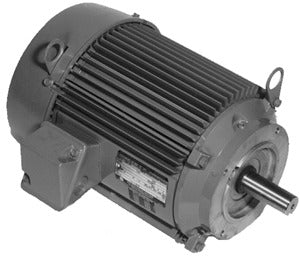

U10P2DCR US Motors / Nidec UNIMOUNT General Purpose Motor - 10 HP - 1760 RPM - 208-230/460 V - TEFC
U10P2DCR US Motors / Nidec UNIMOUNT General Purpose Motor - 10 HP - 1760 RPM - 208-230/460 V - TEFC
Regular price
$1,199.95 USD
Regular price
Sale price
$1,199.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U10P2DCR is a new-in-box UNIMOUNT General Purpose Motor from US Motors / Nidec. Designed for general industrial equipment including fans, blowers, compressors, pumps, and direct-connected machinery.
Specifications
| Horsepower | 10 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1760 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 26.5-23.9/12 A |
| Service Factor | 1.25 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Speed Count | 1 |
| Frame | 215TC |
| Enclosure | TEFC |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Aluminum |
| C Dimension | 20.1 in |
| Length | 20.1 in |
| Ship Weight | 133 lb |
| Country of Origin | MEX |
