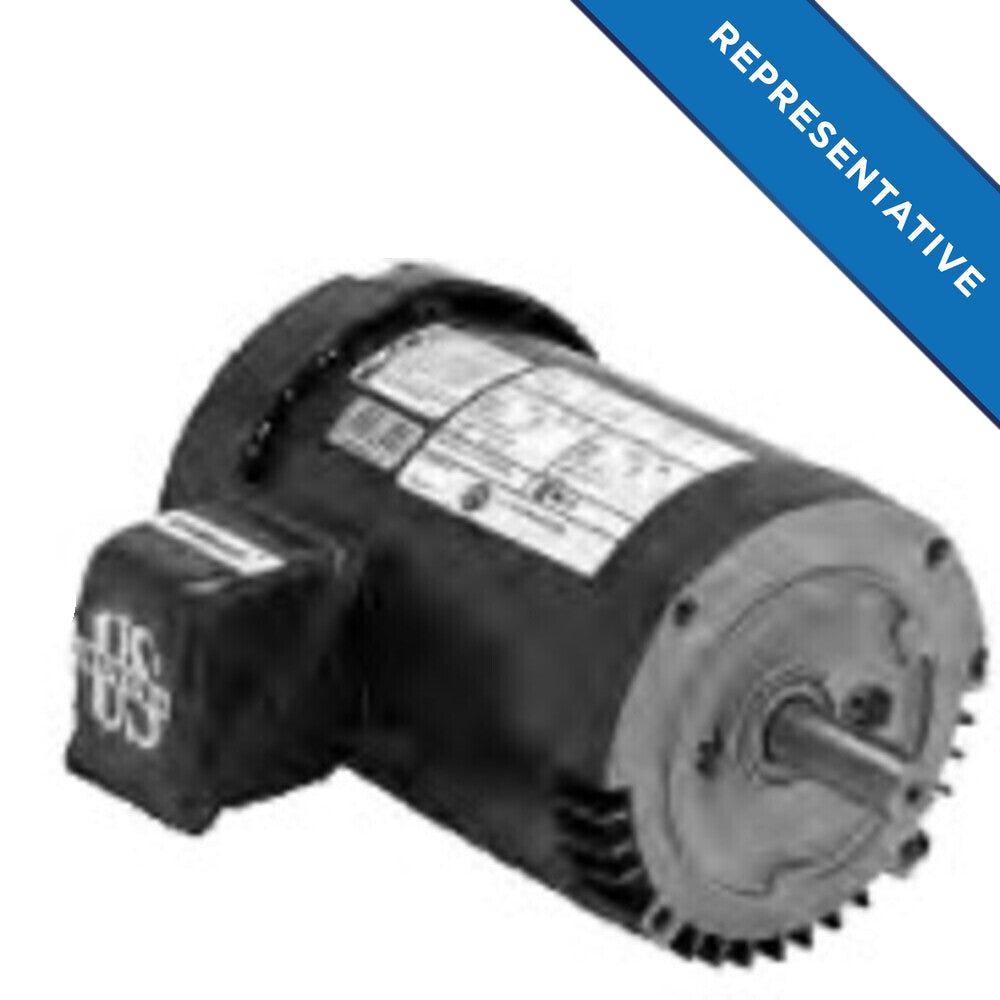

U10P1DC US Motors / Nidec UNIMOUNT General Purpose Motor - 10 HP - 3530 RPM - 230/460 V - TEFC
U10P1DC US Motors / Nidec UNIMOUNT General Purpose Motor - 10 HP - 3530 RPM - 230/460 V - TEFC
Regular price
$1,321.95 USD
Regular price
Sale price
$1,321.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
U10P1DC is a new-in-box UNIMOUNT General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial equipment requiring a rigid-base C-face motor.
Specifications
| Horsepower | 10 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3530 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 24.1/12.0 A |
| Service Factor | 1.25 |
| Overload Protection | Not listed by manufacturer |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 90.2 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 215TC |
| Enclosure | TEFC |
| Mounting | Horizontal footed C-face, F1 |
| Shaft Details | Manufacturer shaft code TC |
| Rotation | Reversible |
| Bearings | DE 6208; ODE 6206 |
| Material | Aluminum |
| Ship Weight | 120 lb |
| Country of Origin | MEX |
