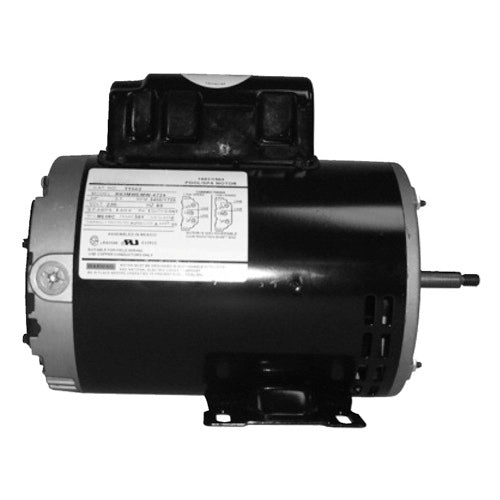

TT507 US Motors / Nidec Pool & Spa Motor - 5 HP - 3450/1725 RPM - 230 V - ODP
TT507 US Motors / Nidec Pool & Spa Motor - 5 HP - 3450/1725 RPM - 230 V - ODP
Regular price
$158.95 USD
Regular price
Sale price
$158.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
TT507 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for above-ground pool and spa pump service.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 3600/1800 RPM |
| Rated RPM | 3450/1725 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 19.5/5.0 A |
| Service Factor | 1.0 |
| Overload Protection | Automatic reset |
| Duty Rating | Continuous |
| Insulation Class | F |
| Hazardous Location Rating | Not applicable |
| Speed Count | 2 |
| Frame | 56Y |
| Enclosure | ODP |
| Mounting | Thru-bolt with rigid base / extended studs |
| Shaft Configuration | Y |
| Shaft Details | 1/2 in threaded shaft |
| Rotation | CW viewed from lead end (CCW viewed from shaft end) |
| Bearings | Ball |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 14.4 in |
| Ship Weight | 48 lb |
| Country of Origin | MEX |
