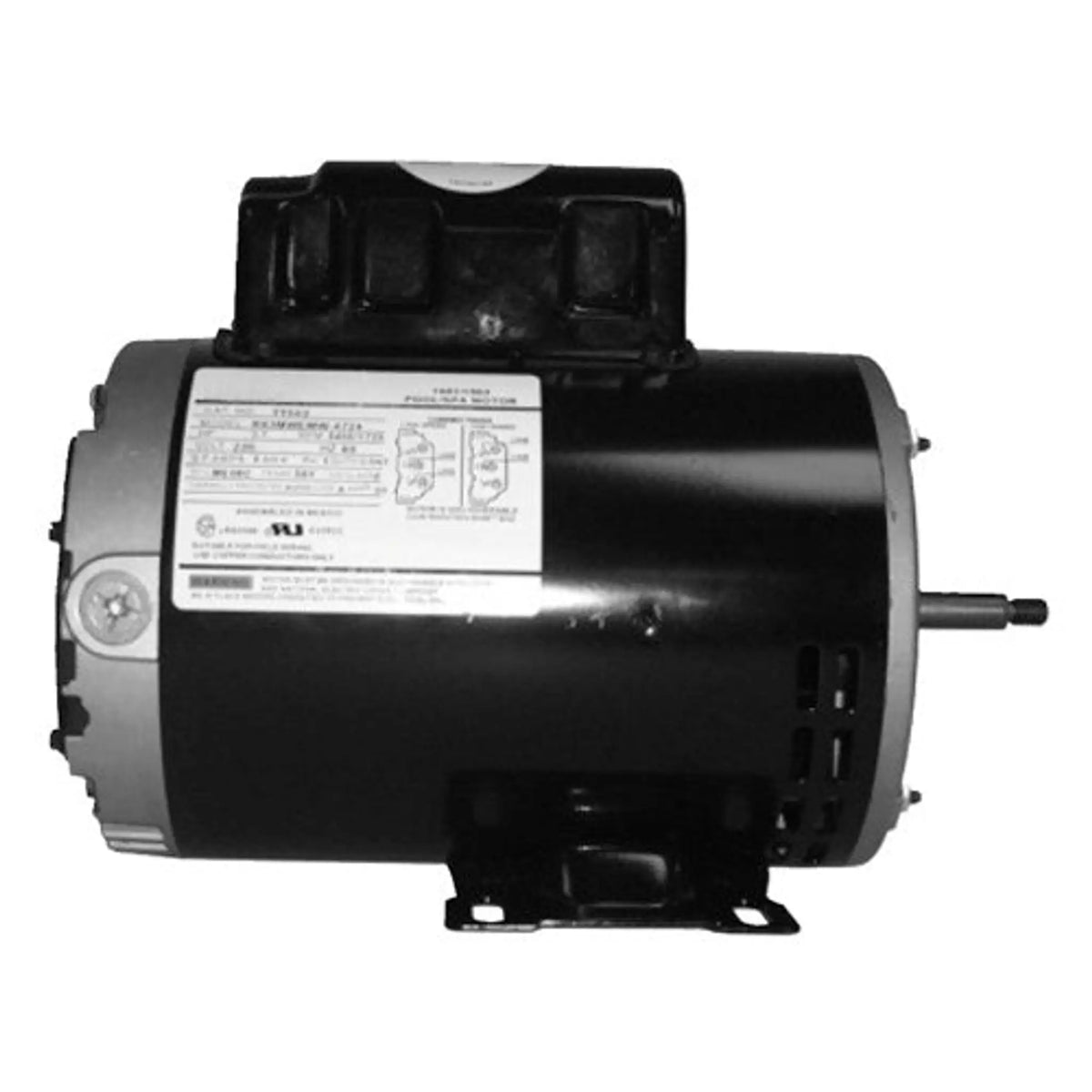

TT504 US Motors / Nidec Pool & Spa Motor - 2 1/2 HP - 3450 RPM - 230 V - ODP
TT504 US Motors / Nidec Pool & Spa Motor - 2 1/2 HP - 3450 RPM - 230 V - ODP
Regular price
$477.95 USD
Regular price
Sale price
$477.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
TT504 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pump applications.
Specifications
| Horsepower | 2 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | PSC |
| Full-Load Amps | 10.5/3.8 A |
| Service Factor | 1 |
| Overload Protection | Automatic Reset |
| Ambient Rating | 60 °C |
| Insulation Class | F |
| Speed Count | 2 |
| Frame | 56Y |
| Enclosure | ODP |
| Mounting | Through-Bolt / Base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CW lead end |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 38 lb |
| Country of Origin | MEX |
