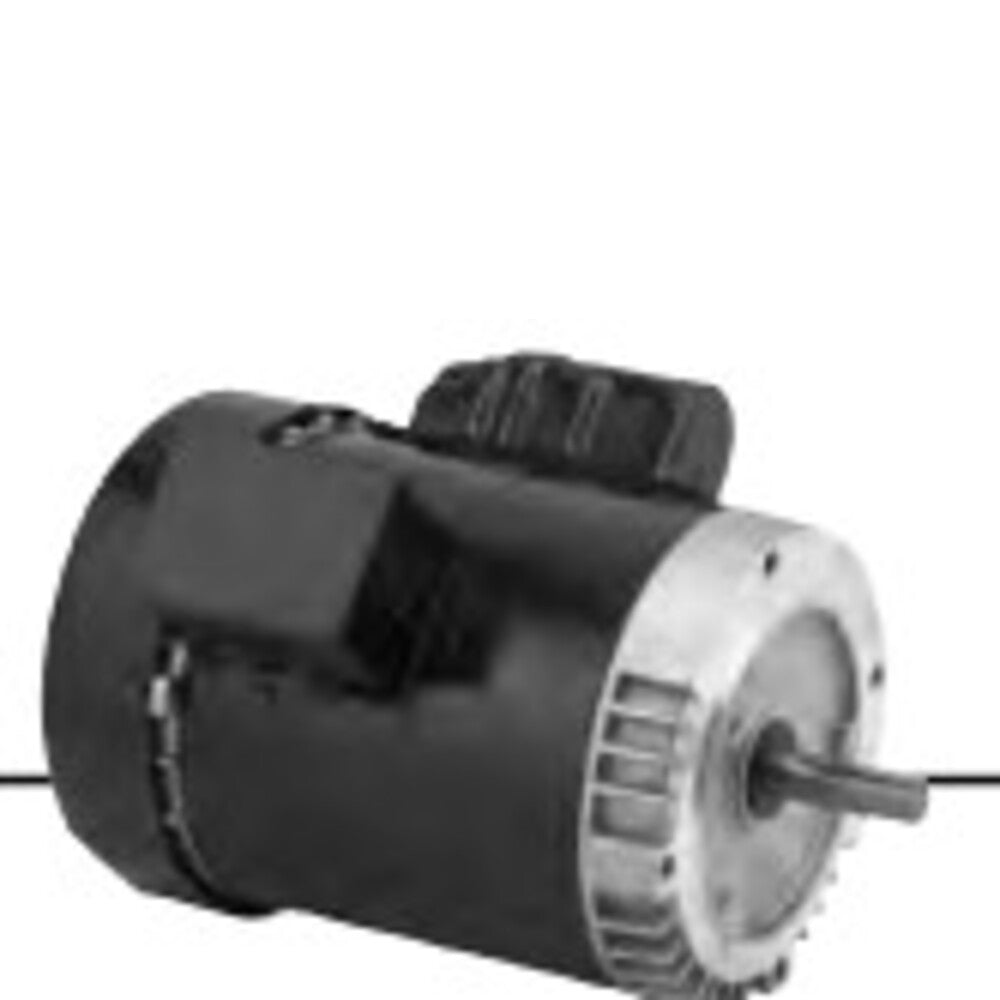

T5C1K18C US Motors / Nidec General Purpose Motor - 5 HP - 3505 RPM - 230 V - TEFC
T5C1K18C US Motors / Nidec General Purpose Motor - 5 HP - 3505 RPM - 230 V - TEFC
Regular price
$1,685.95 USD
Regular price
Sale price
$1,685.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T5C1K18C is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for air compressors, pumps, conveyors, blowers, and general industrial equipment.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3505 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 19.6 A |
| Service Factor | 1 |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 184TC |
| Enclosure | TEFC |
| Mounting | C-face, footed |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Rolled Steel |
| C Dimension | 17.3 in |
| Ship Weight | 91 lb |
| Country of Origin | MEX |
