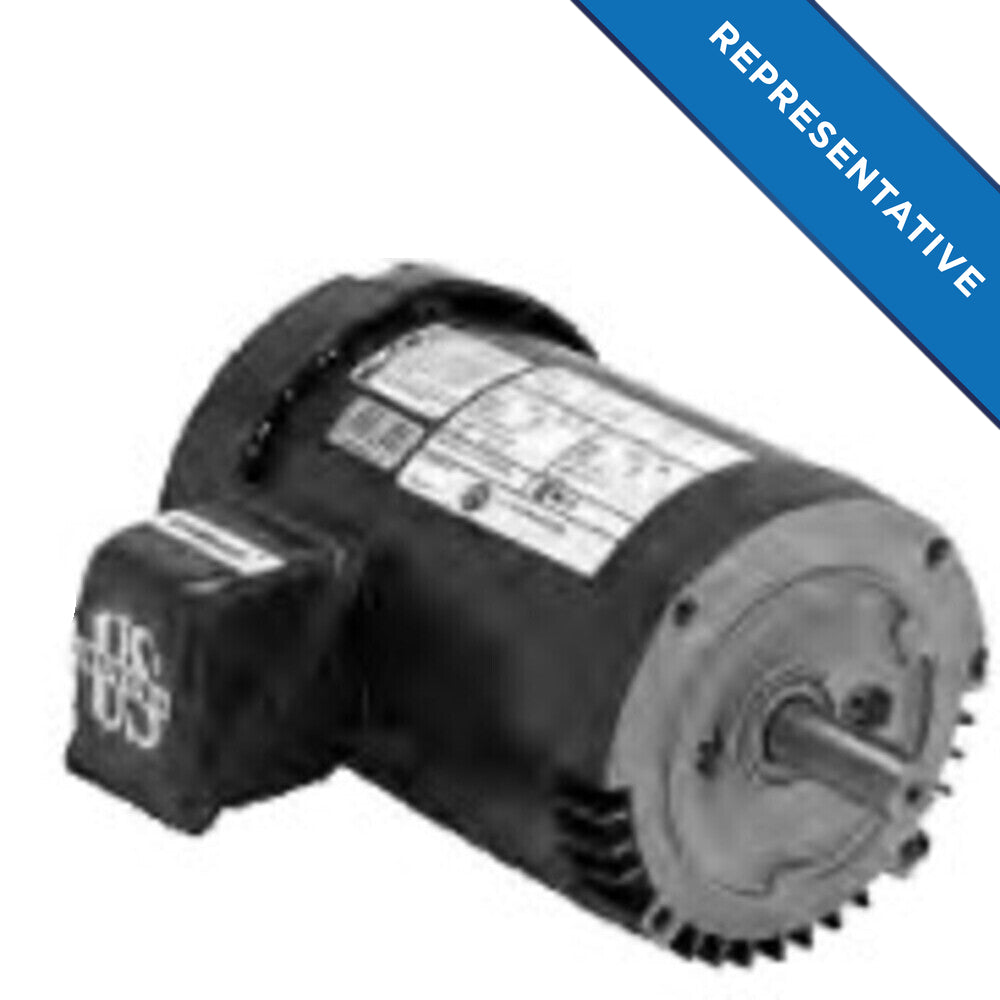

T3P1ACR US Motors / Nidec Premium Efficient Motor - 3 HP - 3450 RPM - 230/460 V - TEFC
T3P1ACR US Motors / Nidec Premium Efficient Motor - 3 HP - 3450 RPM - 230/460 V - TEFC
Regular price
$575.95 USD
Regular price
Sale price
$575.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T3P1ACR is a new-in-box Premium Efficient Motor from US Motors / Nidec. Designed for general-purpose industrial applications.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 7.9-6.7/3.4 A |
| Service Factor | 1.15 |
| Overload Protection | None |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TEFC |
| Mounting | C-face footless |
| Shaft Details | Manufacturer shaft code C |
| Rotation | Reversible |
| Bearings | DE 6203; ODE 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 40 lb |
| Country of Origin | MEX |
