US Motors / Nidec

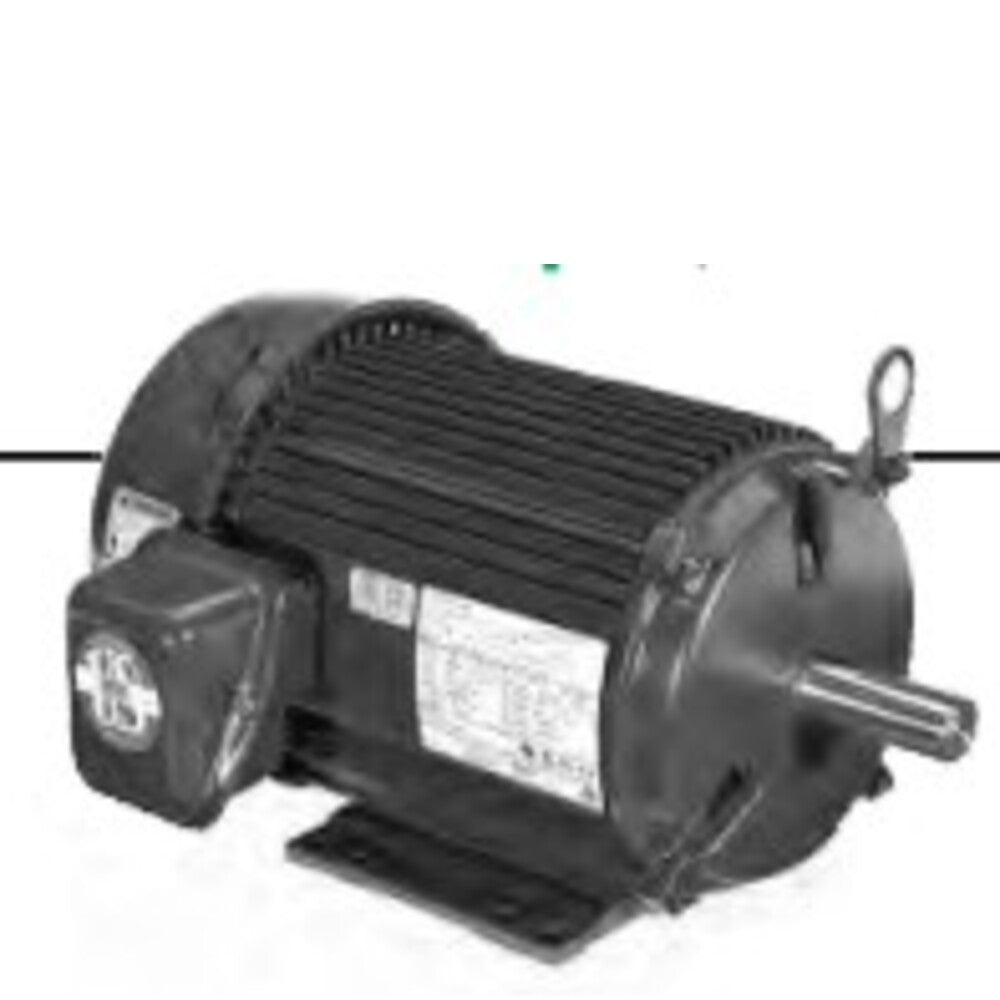

T32V2BFC US Motors / Nidec UNIMOUNT General Purpose Motor - 1 1/2 HP - 1725 RPM - 208-230/460 V - TEFC
T32V2BFC US Motors / Nidec UNIMOUNT General Purpose Motor - 1 1/2 HP - 1725 RPM - 208-230/460 V - TEFC
Regular price
$529.95 USD
Regular price
Sale price
$529.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T32V2BFC is a new-in-box UNIMOUNT General Purpose Motor from US Motors / Nidec. Designed for variable-torque pumps, fans, blowers, and inverter-driven industrial machinery.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 5.1-5.0/2.5 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty; 20:1 variable torque and 5:1 constant torque |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face with rigid base |
| Rotation | Reversible |
| Bearings | 6203 / 6203 ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 34 lb |
| Country of Origin | MEX |
