US Motors / Nidec

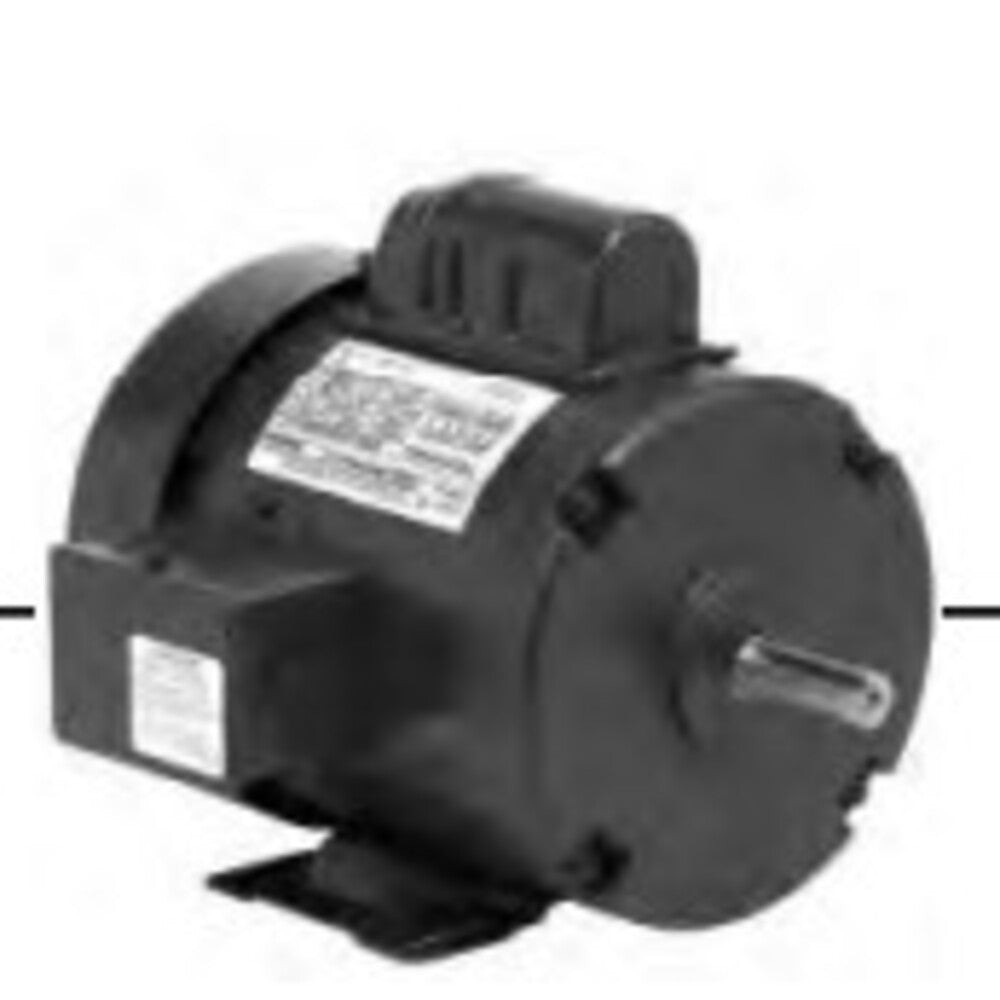

T32C1JH US Motors / Nidec General Purpose Motor - 1 1/2 HP - 3450 RPM - 115/208-230 V - TEFC
T32C1JH US Motors / Nidec General Purpose Motor - 1 1/2 HP - 3450 RPM - 115/208-230 V - TEFC
Regular price
$675.95 USD
Regular price
Sale price
$675.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T32C1JH is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for air compressors, pumps, conveyors, blowers, and general industrial equipment.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 14.6/8.1-7.4 A |
| Service Factor | 1.15 |
| Overload Protection | Not thermally protected |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56H |
| Enclosure | TEFC |
| Mounting | Rigid base, F1 assembly |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 12.9 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
