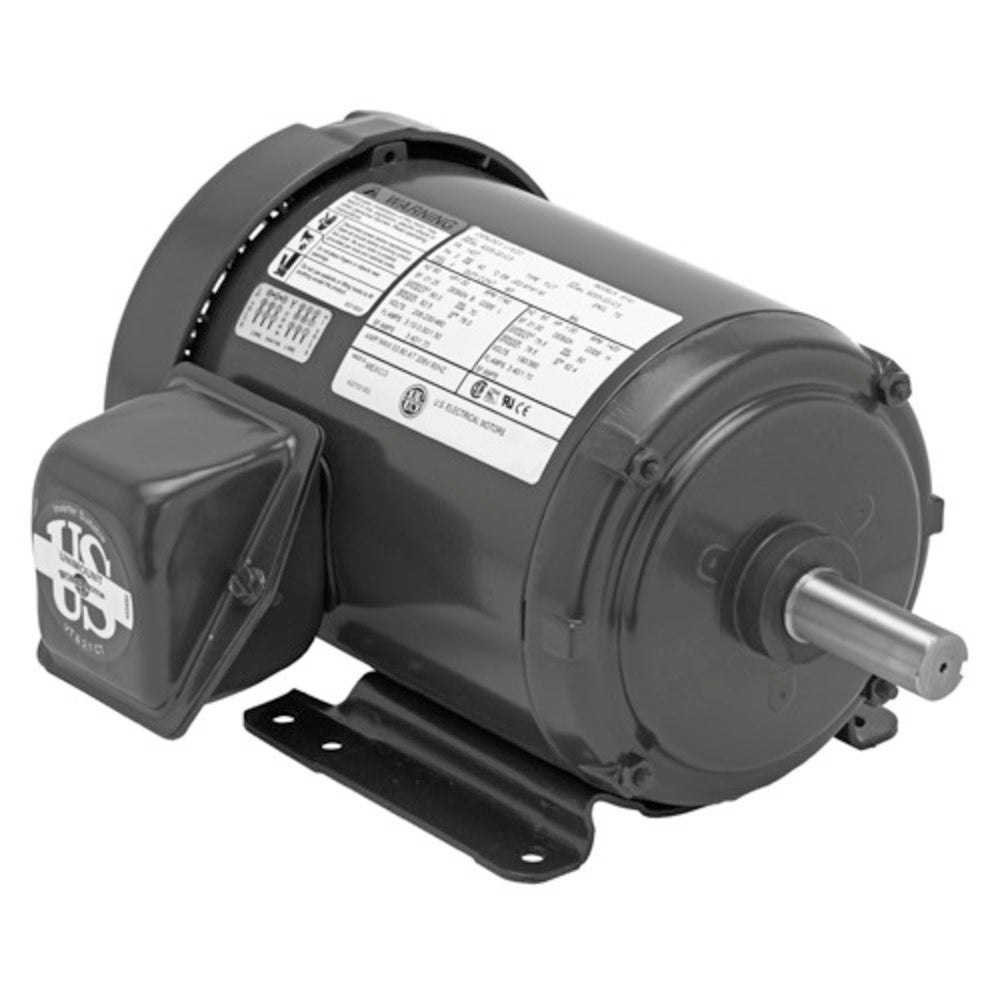

• T1P2AH US Motors / Nidec General Purpose Motor - 1 HP - 1725 RPM - 208-230/460 V - TEFC
1 2

US Motors / Nidec

T1P2AH US Motors / Nidec General Purpose Motor - 1 HP - 1725 RPM - 208-230/460 V - TEFC

T1P2AH US Motors / Nidec General Purpose Motor - 1 HP - 1725 RPM - 208-230/460 V - TEFC

$390.95 USD
$390.95 USD
Sale Sold out
Shipping calculated at checkout.

T1P2AH is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial equipment including fans, blowers, compressors, pumps, and direct-connected equipment.

Specifications

Horsepower 1 HP
Nominal RPM 1800 RPM
Rated RPM 1725 RPM
Voltage 208-230/460 V
Phase Three Phase
Frequency 60 Hz
Electrical Type Three Phase
Full-Load Amps 3.3-3.2/1.5 A
Service Factor 1.15
Overload Protection None
Duty Rating Not listed by manufacturer
Ambient Rating 40 °C
Insulation Class B
Efficiency 85.5 %
Hazardous Location Rating Not applicable
Speed Count 1
Frame 56H
Enclosure TEFC
Mounting Horizontal footed, rigid base
Shaft Details Manufacturer shaft code H
Rotation Reversible
Bearings DE 6203; ODE 6203
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 12.9 in
Length 24 in
Width 13 in
Height 13 in
Ship Weight 35.5 lb
Country of Origin MEX
