US Motors / Nidec

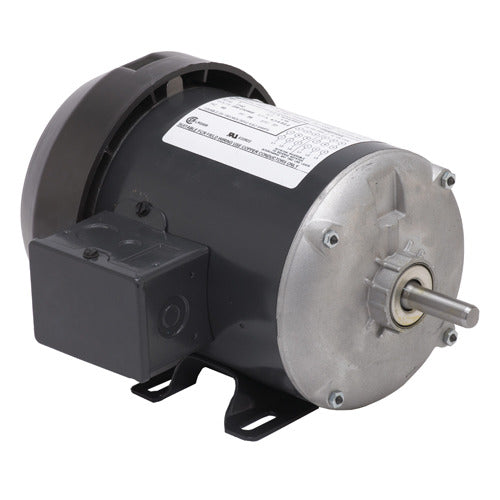

T16B2N49 US Motors / Nidec General Purpose Motor - 1/6 HP - 1725 RPM - 115 V - TEFC
T16B2N49 US Motors / Nidec General Purpose Motor - 1/6 HP - 1725 RPM - 115 V - TEFC
Regular price
$296.95 USD
Regular price
Sale price
$296.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T16B2N49 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 1/6 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 3.4 A |
| Service Factor | 1 |
| Overload Protection | None |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 48Z |
| Enclosure | TEFC |
| Mounting | Cradle |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | Reversible |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
