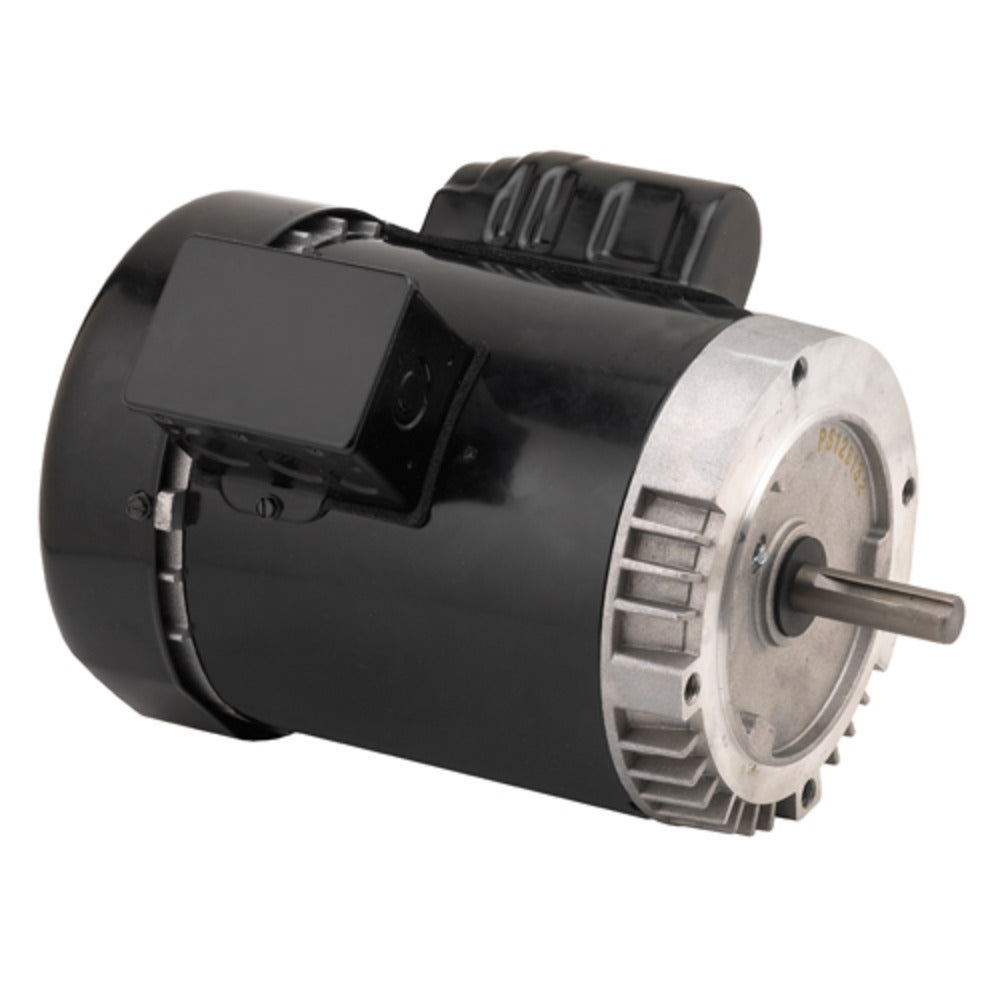

T13CA2JCR US Motors / Nidec General Purpose Motor - 1/3 HP - 1725 RPM - 115/208-230 V - TEFC
T13CA2JCR US Motors / Nidec General Purpose Motor - 1/3 HP - 1725 RPM - 115/208-230 V - TEFC
Regular price
$452.95 USD
Regular price
Sale price
$452.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T13CA2JCR is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for direct-connected general industrial equipment.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 6.6/3.0-3.3 A |
| Service Factor | 1.15 |
| Overload Protection | Automatic reset |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | Not listed by manufacturer % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face footless |
| Shaft Configuration | C |
| Shaft Details | Manufacturer shaft code C |
| Rotation | Reversible |
| Bearings | 6203 ball bearings, both ends |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
