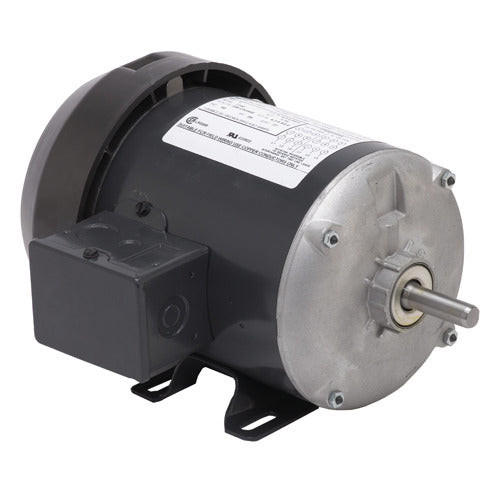

T13B1N4 US Motors / Nidec General Purpose Motor - 1/3 HP - 3450 RPM - 115 V - TEFC
T13B1N4 US Motors / Nidec General Purpose Motor - 1/3 HP - 3450 RPM - 115 V - TEFC
Regular price
$309.95 USD
Regular price
Sale price
$309.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T13B1N4 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 5.4 A |
| Service Factor | 1 |
| Overload Protection | None |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 48Z |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | Reversible |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Ship Weight | 19 lb |
| Country of Origin | MEX |
