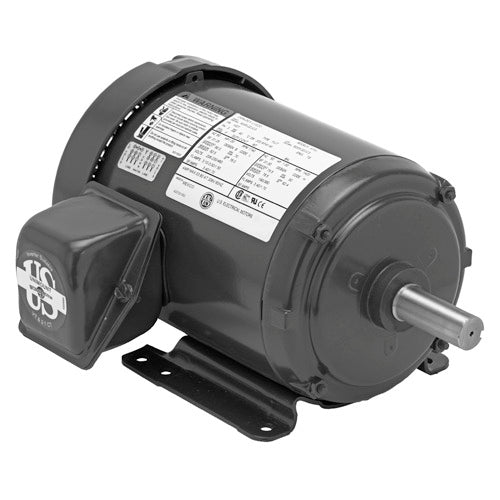

T12S2A US Motors / Nidec STEEL EDGE General Purpose Motor - 1/2 HP - 1725 RPM - 208-230/460 V - TEFC
T12S2A US Motors / Nidec STEEL EDGE General Purpose Motor - 1/2 HP - 1725 RPM - 208-230/460 V - TEFC
Regular price
$302.95 USD
Regular price
Sale price
$302.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T12S2A is a new-in-box STEEL EDGE General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial applications.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 2.0-1.9/1.0 A |
| Service Factor | 1.25 |
| Overload Protection | None |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TEFC |
| Mounting | Rigid base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | Reversible |
| Bearings | DE 6203; ODE 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Length | 22 in |
| Width | 12 in |
| Height | 11 in |
| Ship Weight | 21 lb |
| Country of Origin | MEX |
